SA2411

Features: • 75 + 25j W differential inputs, internally matched• 50 single-ended output, internally matched• 15 dB gain block• Power detector• Bias adjust pin• 18% efficiency at 3 V• RF matching for SA2400AApplication• IEEE 802.11 and 802.11b radios...

product image

SA2411 Picture
See larger image
SeekIC No. : 004483582 Detail

SA2411: Features: • 75 + 25j W differential inputs, internally matched• 50 single-ended output, internally matched• 15 dB gain block• Power detector• Bias adjust pin• 1...

SA2411 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SA2411
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 75 + 25j W differential inputs, internally matched
• 50 single-ended output, internally matched
• 15 dB gain block
• Power detector
• Bias adjust pin
• 18% efficiency at 3 V
• RF matching for SA2400A


Application

• IEEE 802.11 and 802.11b radios
• Supports DSSS and CCK modulation
• Supports data rates: 1, 2, 5.5, and 11 Mbps
• 2.45 GHz ISM band wireless communication devices

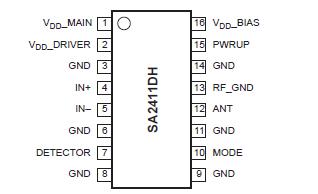

Pinout

Connection Diagram


Specifications

Symbol
 Parameter
Min
Max
Unit
Tstg
 Storage temperature
55
+150
°C
VDDa
 Supply voltage (analog)
0.5
+3.85
V
-
 Voltage applied to inputs
0.5
VDD+0.5
V
-
 Short circuit duration, to GND or VDD
-
1
sec



Description

The SA2411 is a linear power amplifier designed for WLAN application in the 2.4 GHz band. Together with the SA2400A the chips form a complete 802.11b transceiver. The SA2411 is a Si power amplifier with integrated matching and power level detector.
