SA2420

Features: • Low current consumption: 37mA nominal transmit mode and 22mA nominal receive mode• Fabricated on a high volume, rugged BiCMOS technology• High system power gain: 22.5dB (LNA + Mixer) at 2.45GHz• TSSOP24 package• Excellent gain stability versus temperature ...

product image

SA2420 Picture
See larger image
SeekIC No. : 004483583 Detail

SA2420: Features: • Low current consumption: 37mA nominal transmit mode and 22mA nominal receive mode• Fabricated on a high volume, rugged BiCMOS technology• High system power gain: 22.5dB...

SA2420 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SA2420
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low current consumption: 37mA nominal transmit mode and 22mA nominal receive mode
• Fabricated on a high volume, rugged BiCMOS technology
• High system power gain: 22.5dB (LNA + Mixer) at 2.45GHz
• TSSOP24 package
• Excellent gain stability versus temperature and supply voltage
• -10dBm LO input power can be used to drive the mixer
• Operates with either full or half frequency LO
• Wide IF range: 50500MHz


Application

• 2.45GHz WLAN front-end (802.11, ISM)

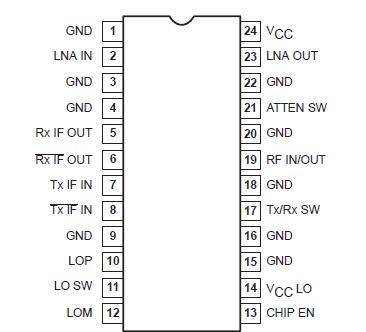

Pinout

Connection Diagram


Specifications

SYMBOL
 PARAMETER
RATING
UNITS
VCC
 Supply voltage
-0.3 to +6
V
VIN
 Voltage applied to any pin
-0.3 to (VCC + 0.3)
V
PD
 Power dissipation, TA = 25°C (still air)
24-Pin Plastic TSSOP
555
mW
TJMAX
 Maximum operating junction temperature
150
°C
PMAX
 Maximum power (RF/IF/LO pins)
+20
dBm
TSTG
 Storage temperature range
65 to +150
°C
1. Transients exceeding these conditions may damage the product.
2. Maximum dissipation is determined by the operating ambient temperature and the thermal resistance, and absolute maximum ratings may
    impact product reliability JA: 24-Pin TSSOP = 117°C/W
3. IC is protected for ESD voltages for 2000V, excepts pins 10 and 12, which are protected up to 500V.


Description

The SA2420 transceiver is a combined low-noise amplifier, receive mixer, transmit mixer and LO buffer IC designed for high-performance low-power  ommunication systems for 2.4-2.5GHz applications. The LNA has a 2.5dB noise figure at 2.45GHz with 14dB gain and an IP3 intercept of -3dBm at the input.
The gain of SA2420 is stabilized by on-chip compensation to vary less than ±0.2dB over the -40 to +85°C temperature range. The wide-dynamic-range receive mixer has a 10.9dB noise figure and an input IP3 of +2.8dBm at 2.45GHz. The nominal current drawn from a single 3V supply is 37mA in transmit mode and 22mA in receive mode.
