SA3600

Features: • Low current consumption: LB ICC = 14.5 mA; HB ICC = 20.5 mA• Outstanding low- and high-band noise figure• LNAs with gain control (30 dB gain step)• LO input and output buffers• Selectable frequency doubler• On chip logic for network selection and pow...

product image

SA3600 Picture
See larger image
SeekIC No. : 004483637 Detail

SA3600: Features: • Low current consumption: LB ICC = 14.5 mA; HB ICC = 20.5 mA• Outstanding low- and high-band noise figure• LNAs with gain control (30 dB gain step)• LO input and o...

SA3600 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SA3600
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low current consumption: LB ICC = 14.5 mA; HB ICC = 20.5 mA
• Outstanding low- and high-band noise figure
• LNAs with gain control (30 dB gain step)
• LO input and output buffers
• Selectable frequency doubler
• On chip logic for network selection and power down
• Very small outline package


Application

• 800 to 1000 MHz analog and digital receivers
• 1800 to 2000 MHz digital receivers
• Portable radios
• Mobile communications equipment


Pinout

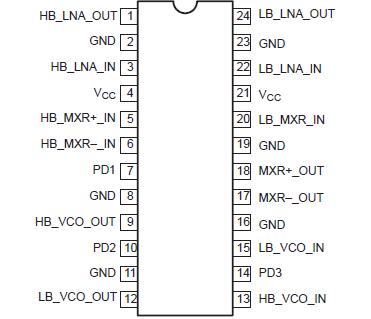

Connection Diagram


Specifications

SYMBOL
 PARAMETER
LIMITS
UNITS
MIN.
MAX.
VCC
 Supply voltage
0.3
+4.5
V
VIN
 Voltage applied to any other pin
0.3
VCC+0.3
V
PD
 Power dissipation, Tamb = +25 °C (still air)
-
555
mW
TJMAX
 Maximum junction temperature
-
150
°C
PMAX
 Power input/output
-
+20
dBm
IMAX
 DC current into any I/O pin
-10
+10
mA
TSTG
 Storage temperature range
-65
+150
°C
TO
 Operating temperature
-40
+85
°C
NOTES:
1. IC is protected against ESD voltages up to 500 V (human body model).


Description

The SA3600 is an integrated dual-band RF front-end that operates at oth cellular (AMPS and TDMA) and PCS (TDMA) frequencies, and s designed in a 20 GHz fT BiCMOS process-QUBiC2.

The SA3600 low-band (LB) receiver is a combined low-noise amplifier (LNA) nd mixer. The LNA has a 1.7 dB noise figure (NF) at 881 MHz with 7 dB of gain and an IIP3 of 7 dBm. The wide-dynamic range mixer as a 9.5 dB NF at 881 MHz with 9.5 dB of gain and an IIP3 of 6 dBm.

The SA3600 high-band (HB) receiver is a combined low-noise amplifier (LNA) nd mixer, with the low-band and high-band mixers sharing the same ixer output. The LNA has a 2.2 dB NF at 1960 MHz with 16 dB of ain and an IIP3 of 5 dBm. The wide-dynamic range mixer has a 8.5 B NF at 1960 MHz with 8.5 dB of gain and an IIP3 of +5.5 dBm.
