SA5219

Features: • 700MHz bandwidth• High impedance differential input• 50 differential output• Single 5V power supply• 0 - 1V gain control pin• >60dB gain control range at 200MHz• 26dB maximum gain differential• Exceptional VCONTROL / VGAIN linearity...

product image

SA5219 Picture
See larger image
SeekIC No. : 004483668 Detail

SA5219: Features: • 700MHz bandwidth• High impedance differential input• 50 differential output• Single 5V power supply• 0 - 1V gain control pin• >60dB gain control ra...

SA5219 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SA5219
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 700MHz bandwidth
• High impedance differential input
• 50 differential output
• Single 5V power supply
• 0 - 1V gain control pin
• >60dB gain control range at 200MHz
• 26dB maximum gain differential
• Exceptional VCONTROL / VGAIN linearity
• 7dB noise figure minimum
• Full ESD protection
• Easily cascadable


Application

• Linear AGC systems
• Very linear AM modulator
• RF balun
• Cable TV multi-purpose amplifier
• Fiber optic AGC
• RADAR
• User programmable fixed gain block
• Video
• Satellite receivers
• Cellular communications


Pinout

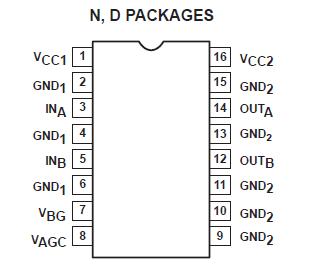

Connection Diagram


Specifications

SYMBOL
 PARAMETER
RATING
UNITS
VCC
 Supply voltage
-0.5 to +8.0
V
PD
 Power dissipation, TA = 25oC (still air)1
16-Pin Plastic DIP
16-Pin Plastic SO
1450
1100
mW
mW
TJMAX
 Maximum operating junction temperature
150
°C
TSTG
 Storage temperature range
-65 to +150
°C
NOTES:
1. Maximum dissipation is determined by the operating ambient temperature and the thermal resistance, JA:
    16-Pin DIP: JA = 85°C/W
    16-Pin SO: JA = 110°C/W


Description

The SA5219 represents a breakthrough in monolithic amplifier design featuring several innovations. This unique design has combined the advantages of a high speed bipolar process with the proven Gilbert architecture.

The SA5219 is a linear broadband RF amplifier whose gain is controlled by a single DC voltage. The amplifier runs off a single 5 volt supply and consumes only 40mA. The amplifier has high impedance (1k) differential inputs. The output of SA5219 is 50 differential. Therefore, the 5219 can simultaneously perform AGC, impedance transformation, and the balun functions.

The dynamic range of SA5219 is excellent over a wide range of gain setting. Furthermore, the noise performance degrades at a comparatively slow rate as the gain is reduced. This is an important feature when building linear AGC systems
