SA555N

Maximum Power Dissipation :
Minimum Operating Temperature : - 40 C
Number of Internal Timers : 1
Type : Standard
Supply Voltage - Max : 16 V
Supply Voltage - Min : 4.5 V
Packaging : Tube
Maximum Operating Temperature : + 105 C
Package / Case : PDIP-8


Features:

·LOW TURN OFF TIME
·MAXIMUM OPERATING FREQUENCY GREATERTHAN 500kHz
·TIMING FROM MICROSECONDS TO HOURS
·OPERATES IN BOTH ASTABLE AND MONOSTABLEMODES
·HIGH OUTPUT CURRENT CAN SOURCE OR SINK 200mA
·ADJUSTABLE DUTY CYCLE
·TTL COMPATIBLE
·TEMPERATURE STABILITY OF 0.005% PERoC

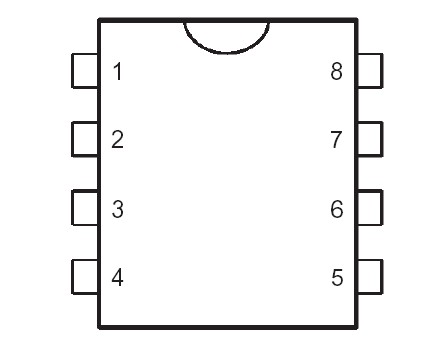

Pinout




Specifications

Symbol	Parameter		Value	Unit
Vcc	Supply Voltage		18	V
Toper	Operating Free Air Temperature Range	for NE555 for SA555 for SE555	0 to 70 40 to 105 55 to 125	°C
Tj Tstg	Junction Temperature Storage Temperature Range		150 65 to 150	°C °C

Description

The NE555 monolithic timing circuit isa highlystable controller capableofproducingaccuratetime delays or oscillation. In the time delay mode of operation, the time is precisely controlled by one external resistorandcapacitor. For astableoperationasanoscillator, the free running frequency and the duty cycle are both accurately controlled with two external resistors and one capacitor. The NE555 may be triggered and reset on falling waveforms, and the output structure can source or sink up to 200mA. The NE555 is available in plastic and ceramic minidip packageand in a 8-leadmicropackage and inmetal can package version.

Parameters:

Technical/Catalog Information	SA555N
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Type	555 Type, Timer/Oscillator (Single)
Frequency	-
Count	-
Voltage - Supply	4.5 V ~ 16 V
Current	6mA
Package / Case	8-DIP (300 mil)
Packaging	Tube
Operating Temperature	-40°C ~ 105°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SA555N SA555N 497 2036 5 ND 49720365ND 497-2036-5
