SA58670

Features:

Output power
2.1 W/channel into 4 at 5 V
1.4 W/channel into 8 at 5 V
720 mW/channel into 8 at 3.6 V
Power supply range: 2.5 V to 5.5 V
Independent shutdown control for each channel
Selectable gain of 6 dB, 12 dB, 18 dB and 24 dB
High PSSR: 77 dB at 217 Hz
Fast start-up time of 3.5 ms
Low supply current
Low shutdown current
Short-circuit and thermal protection
Space savings with 4 mm * 4 mm HVQFN20 package
Low junction to ambient thermal resistance of 24 K/W with exposed die attach paddle


Application

Wireless and cellular handsets and PDAs
Portable DVD player
USB speakers
Notebook PC
Portable radio and gaming

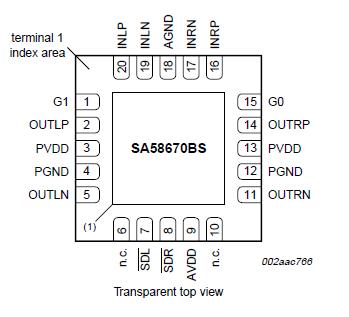

Pinout




Specifications

Symbol	Parameter	Conditions	Min	Max	Unit
VDD	supply voltage	active mode	−0.3	+6.0	V
		shutdown mode	−0.3	+7.0	V
VI	input voltage		−0.3	VDD+ 0.3	V
Ptot	total power dissipation	continuous	<tbd>	<tbd>	W
P	power dissipation	derating factor 41.6 mW/°C
		Tamb= 25 °C	-	5.2	W
		Tamb= 75 °C	-	3.12	W
		Tamb= 85 °C	-	2.7	W
Tamb	ambient temperature operating in free air		−40	+85	°C
Tj	junction temperature operating		−40	+150	°C
Tstg	storage temperature		−65	+85	°C
ESD	Human body model		2		kV
ESD	Machine model		200		V
VSD(max)	Shutdown pin voltage maximum voltage		GND	VDD	V

Description

The SA58670 is a stereo, filter-free Class D audio amplifier which is available in an HVQFN20 package with the exposed Die Attach Paddle (DAP).

The SA58670 features independent shutdown controls for each channel. The gain may be set at 6 dB, 12 dB, 18 dB or 24 dB utilizing G0 and G1 gain select pins. Improved immunity to noise and RF rectification is increased by high PSRR and differential circuit topology. Fast start-up time and small package, makes SA58670 an ideal choice for both cellular handsets and PDAs.

The SA58670 delivers 1.4 W/channel at 5 V and 720 mW/channel at 3.6 V into 8 . It delivers 2.1 W/channel at 5 V into 4 . The maximum power efficiency is excellent at 70 % to 74 % into 4 and 84 % to 88 % into 8 . The SA58670 provides thermal and short circuit shutdown protection.
