Part Number: SA614A
Description: The SA614A is an improved monolithic low-power FM IF system incorporating two limiting intermediate fr...
- Table of contents:
SA614A
-
Suppliers
DataSheet
General Description
SA614A General Description
The SA614A is an improved monolithic low-power FM IF system incorporating two limiting intermediate frequency amplifiers, quadrature detector, muting, logarithmic received signal strength indicator, and voltage regulator. The SA614A features higher IF bandwidth (25MHz) and temperature compensated RSSI and limiters permitting higher performance application compared with the SA604. The SA614A is available in a 16-lead dual-in-line plastic and 16-lead SO (surface-mounted miniature) package.
SA614A Maximum Ratings
|
SYMBOL |
PARAMETER |
RATING |
UNITS |
|
VCC |
Single supply voltage |
9 |
V |
|
TSTG |
Storage temperature range |
65 to +150 |
°C |
|
TA |
Operating ambient temperature range SA614A |
40 to +85 |
°C |
|
JA |
Thermal impedance D package |
90 |
°C/W |
| N package |
75 |
SA614A Features
• Low power consumption: 3.3mA typical
• Temperature compensated logarithmic Received Signal Strength Indicator (RSSI) with a dynamic range in excess of 90dB
• Two audio outputs - muted and unmuted
• Low external component count; suitable for crystal/ceramic filters
• Excellent sensitivity: 1.5mV across input pins (0.22mV into 50W matching network) for 12dB SINAD (Signal to Noise and Distortion ratio) at 455kHz
• SA614A meets cellular radio specifications
• Temperature compensated logarithmic Received Signal Strength Indicator (RSSI) with a dynamic range in excess of 90dB
• Two audio outputs - muted and unmuted
• Low external component count; suitable for crystal/ceramic filters
• Excellent sensitivity: 1.5mV across input pins (0.22mV into 50W matching network) for 12dB SINAD (Signal to Noise and Distortion ratio) at 455kHz
• SA614A meets cellular radio specifications
SA614A Typical Application
• Cellular radio FM IF
• High performance communications receivers
• Intermediate frequency amplification and detection up to 25MHz
• RF level meter
• Spectrum analyzer
• Instrumentation
• FSK and ASK data receivers
• High performance communications receivers
• Intermediate frequency amplification and detection up to 25MHz
• RF level meter
• Spectrum analyzer
• Instrumentation
• FSK and ASK data receivers

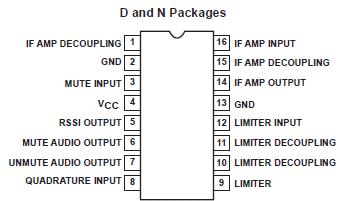

SA614A Connection Diagram
SA614A
