Part Number: SA616
Package Cooled: 5000
Description: The SA616 is a low-voltage high performance monolithic FM IF system incorporating a mixer/oscillator, ...
- Table of contents:
SA616
-
Suppliers
DataSheet
General Description
SA616 General Description
The SA616 is a low-voltage high performance monolithic FM IF system incorporating a mixer/oscillator, two limiting intermediate frequency amplifiers, quadrature detector, logarithmic received signal strength indicator (RSSI), voltage regulator and audio and RSSI op amps. The SA616 is available in 20-lead SSOP (shrink small outline package).
The SA616 was designed for portable communication applications and will function down to 2.7V. The RF section is similar to the famous SA615. The audio and RSSI outputs have amplifiers with access to the feedback path. This enables the designer to adjust the output levels or add filtering.
SA616 Maximum Ratings
| SYMBOL | PARAMETER | RATING | UNITS |
| VCC | Single supply voltage | 7 | V |
| TSTG | Storage temperature range | -65 to +150 | °C |
| TA | Operating ambient temperature range | -40 to +85 | °C |
| JA | Thermal impedance DK package | 117 | °C/W |
SA616 Features
• Low power consumption: 3.5mA typical at 3V
• Mixer input to >150MHz
• Mixer conversion power gain of 17dB at 45MHz
• XTAL oscillator effective to 150MHz (L.C. oscillator or external oscillator can be used at higher frequencies)
• 102dB of IF Amp/Limiter gain
• 2MHz IF amp/limiter small signal bandwidth
• Temperature compensated logarithmic Received Signal Strength Indicator (RSSI) with a 80dB dynamic range
• Low external component count; suitable for crystal/ceramic/LC filters
• Excellent sensitivity: 0.31V into 50 matching network for 12dB SINAD (Signal to Noise and Distortion ratio) for 1kHz tone with RF at 45MHz and IF at 455kHz
• SA616 meets cellular radio specifications
• Audio output internal op amp
• RSSI output internal op amp
• Internal op amps with rail-to-rail outputs
• ESD protection: Human Body Model 2kV
Robot Model 200
SA616 Typical Application
• Portable cellular radio FM IF
• Cordless phones
• Wireless systems
• RF level meter
• Spectrum analyzer
• Instrumentation
• FSK and ASK data receivers
• Log amps
• Portable high performance communication receiver
• Single conversion VHF receivers
• Cordless phones
• Wireless systems
• RF level meter
• Spectrum analyzer
• Instrumentation
• FSK and ASK data receivers
• Log amps
• Portable high performance communication receiver
• Single conversion VHF receivers

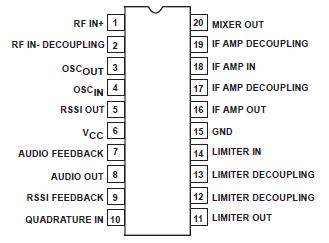

SA616 Connection Diagram
SA616
