• Fast RSSI rise and fall times
• Low power consumption: 5.8mA typical at 6V
• Mixer input to >500MHz
• Mixer conversion power gain of 13dB at 45MHz
• Mixer noise figure of 4.6dB at 45MHz
• XTAL oscillator effective to 150MHz (L.C. oscillator to 1GHz local oscillator can be injected)
• 102dB of IF Amp/Limiter gain
• 25MHz limiter small signal bandwidth
• Temperature compensated logarithmic Received Signal Strength Indicator (RSSI) with a dynamic range in excess of 90dB
• Audio output - mutable
• Low external component count; suitable for crystal/ceramic/LC filters
• Excellent sensitivity: 0.22V into 50 matching network for 12dB SINAD (Signal to Noise and Distortion ratio) for 1kHz tone, 8kHz deviation with RF at 45MHz and IF at 455kHz
• SA627 meets cellular radio specifications
• ESD hardened
SYMBOL | PARAMETER | RATING | UNITS |
VCC | Single supply voltage | 9 | V |
TSTG | Storage temperature range | 65 to +150 | °C |
TA | Operating ambient temperature range SA627 | -40 to +85 | °C |
JA | Thermal impedance D package DK package |
90 117 |
°C/W °C/W |

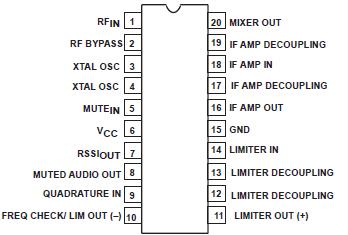

The SA627 has faster RSSI rise and fall times. The SA627 is a high performance monolithic low-power FM IF system incorporating a mixer/oscillator, two limiting intermediate frequency amplifiers, quadrature detector, muting, logarithmic received signal strength indicator (RSSI) with fast rise and fall time, voltage regulator and frequency check/limiter out (). The SA627 also has an extra limiter output. This signal is buffered from the output of the limiter and provides a negative () limiter output. This can be used to provide a frequency check function. The SA627 is available in 20-lead SOL (surface-mounted miniature package) and 20-lead SSOP (shrink small outline package).
