SA636

Sockets & Adapters SA636 SOCKET ADAPTER

product image

SA636 Picture
See larger image
SeekIC No. : 00115100 Detail

SA636: Sockets & Adapters SA636 SOCKET ADAPTER

SA636 Data Sheet

floor Price/Ceiling Price

US $ 111~111 / Piece | Get Latest Price
Part Number:
SA636
Mfg:
Xeltek
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • Unit Price
  • $111
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Socket Adapters For Use With : SUPERPRO-5000

Description

Product : Socket Adapters
For Use With : SUPERPRO-5000


Features:

• Wideband data output (600kHz min.)
• Fast RSSI rise and fall times
• Low power consumption: 6.5mA typ at 3V
• Mixer input to >500MHz
• Mixer conversion power gain of 11dB at 240MHz
• Mixer noise figure of 12dB at 240MHz
• XTAL oscillator effective to 150MHz (L.C. oscillator to 1GHz local oscillator can be injected)
• 92dB of IF Amp/Limiter gain
• 25MHz limiter small signal bandwidth
• Temperature compensated logarithmic Received Signal Strength Indicator (RSSI) with a dynamic range in excess of 90dB
• RSSI output internal op amp
• Internal op amps with rail-to-rail outputs
• Low external component count; suitable for crystal/ceramic/LC filters
• Excellent sensitivity: 0.54V into 50 matching network for 12dB SINAD (Signal to Noise and Distortion ratio) for 1kHz tone with RF at 240MHz and IF at 10.7MHz
• ESD hardened
• 10.7MHz filter matching (330)
• Power down mode (ICC = 200A)


Application

• DECT (Digital European Cordless Telephone)
• Digital cordless telephones
• Digital cellular telephones
• Portable high performance communications receivers
• Single conversion VHF/UHF receivers
• FSK and ASK data receivers
• Wireless LANs


Pinout

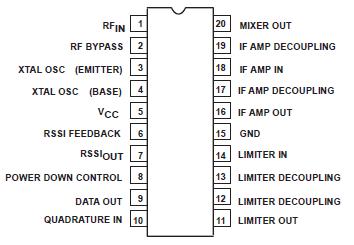

Connection Diagram


Specifications

SYMBOL PARAMETER RATING UNITS
VCC Single supply voltage 0.3 to 7 V
VIN Voltage applied to any other pin 0.3 to (VCC+0.3) V
TSTG Storage temperature range 65 to +150 °C
TA Operating ambient temperature range SA636 40 to +85 °C

NOTE: JA, Thermal impedance         DK package           117°C/W


Description

The SA636 is a low-voltage high performance monolithic FM IF system with high-speed RSSI incorporating a mixer/oscillator, two limiting intermediate frequency amplifiers, quadrature detector, logarithmic received signal strength indicator (RSSI), voltage regulator, wideband data output and fast RSSI op amps. The SA636 is available in 20-lead SSOP (shrink small outline package).

The SA636 was designed for high bandwidth portable communication applications and will function down to 2.7V. The RF section is similar to the famous SA605. The data output has a minimum bandwidth of 600kHz. SA636 is designed to demodulate wideband data. The RSSI output is amplified. The RSSI output has access to the feedback pin. This enables the designer to adjust the level of the outputs or add filtering.

SA636 incorporates a power down mode which powers down the device when Pin 8 is low. Power down logic levels are CMOS and TTL compatible with high input impedance.
