Part Number: SA741C









Description: The mA741 is a high performance operational amplifier with high open-loop gain, internal compensation,...


Urgent Purchase

SA741C General Description


The mA741 is a high performance operational amplifier with high open-loop gain, internal compensation, high common mode range and exceptional temperature stability. The mA741 is short-circuit-protected and allows for nulling of offset voltage.

SA741C Maximum Ratings

SYMBOL
PARAMETER
RATING
UNIT
VS
Supply voltage
mA741C
mA741
±18±22

V
V

PD
Internal power dissipation
D package
N package
F package
780
1170
800

mW
mW
mW

VIN
Differential input voltage
±30
V
VIN
Input voltage1
±15
V
ISC
Output short-circuit duration
Continuous
TA
Operating temperature range
mA741C
SA741C
mA741
0 to +70
-40 to +85
55 to +125

°C
°C
°C

TSTG
Storage temperature range
-65 to +150
°C
TSOLD
Lead soldering temperature (10sec max)
300
°C
NOTES:  1. For supply voltages less than ±15V, the absolute maximum input voltage is equal to the supply voltage

SA741C Features

• Internal frequency compensation
• Short circuit protection
• Excellent temperature stability
• High input voltage range

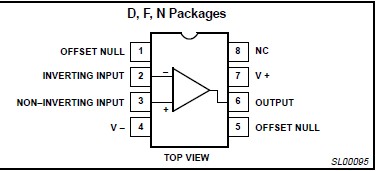

SA741C Connection Diagram

SA741C Connection Diagram
