SA8807A

Features: · Drives up to 96 segments· Serial (SPI) interface with Read/Write capability· Operates over a wide temperature range· External contrast control· Low power CMOSPinoutSpecifications Parameter Symbol Min Max Unit Supply Voltage VDD -VSS -0.3 6.0 V Current on any pin IPI...

product image

SA8807A Picture
See larger image
SeekIC No. : 004483819 Detail

SA8807A: Features: · Drives up to 96 segments· Serial (SPI) interface with Read/Write capability· Operates over a wide temperature range· External contrast control· Low power CMOSPinoutSpecifications Pa...

SA8807A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SA8807A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Drives up to 96 segments
· Serial (SPI) interface with Read/Write capability
· Operates over a wide temperature range
· External contrast control
· Low power CMOS


Pinout

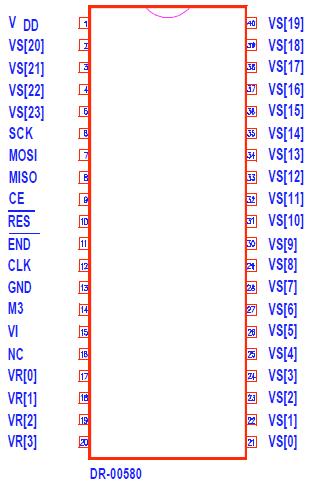

Connection Diagram


Specifications

Parameter Symbol Min Max Unit
Supply Voltage VDD -VSS -0.3 6.0 V
Current on any pin IPIN -150 +150 mA
Storage Temperature TSTG -40 +125 °C
Operating Temperature TO -25 +85 °C


* Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only. Functional operation of the device at these or any other condition above those indicated in the operational sections of this specification, is not implied. Exposure to Absolute Maximum Ratings for extended periods may affect device reliability.




Description

The SAMES SA8807A Liquid Crystal Display (LCD) Driver is capable of driving up to 96 LCD segments and is designed for displays having 3 or 4 track multiplexed backplanes.

The SA8807A includes an on-chip oscillator. The data exchange is carried out via the Serial Peripheral Interface (SPI).

This LCD driver SA8807A is ideal for any microcontroller based system requiring a liquid crystal display of up to 12 digits.

The SA8807A integrated circuit is available in both 40 pin dual-in-line plastic (DIP-40), as well as 44 pin plastic leaded chip carrier (PLCC-44) package types.
