Product Details

Description



Features:

· Digital PAL/NTSC encoder with integrated high quality scaler and anti-flicker filter for TV output from a PC
· 27 MHz crystal-stable subcarrier generation
· Maximum graphics pixel clock 45 MHz at double edged clocking, synthesized on-chip or from external source
· Up to 800 × 600 graphics data at 60 Hz or 50 Hz with programmable underscan range
· Three Digital-to-Analog Converters (DACs) at 27 MHz sample rate for CVBS (BLUE, CB), VBS (GREEN, CVBS) and C (RED, CR) (signals in parenthesis are optional); all at 10-bit resolution
· Non-interlaced CB-Y-CR or RGB input at maximum 4 : 4 : 4 sampling
· Downscaling from 1 : 1 to 1 : 2 and up to 20% upscaling
· Optional interlaced CB-Y-CR input Digital Versatile Disk (DVD)
· Optional non-interlaced RGB output to drive second VGA monitor (bypass mode, maximum 45 MHz)
· 3 × 256 bytes RGB Look-Up Table (LUT)
· Support for hardware cursor
· Programmable border colour of underscan area
· On-chip 27 MHz crystal oscillator (3rd-harmonic or fundamental 27 MHz crystal)
· Fast I2C-bus control port (400 kHz)
· Encoder can be master or slave
· Programmable horizontal and vertical input synchronization phase
· Programmable horizontal sync output phase
· Internal Colour Bar Generator (CBG)
· Optional support of various Vertical Blanking Interval (VBI) data insertion
· Macrovision Pay-per-View copy protection system rev. 7.01 and rev. 6.1 as option; this applies to SAA7102 only. The device is protected by USA patent numbers 4631603, 4577216 and 4819098 and other intellectual property rights. Use of the Macrovision anti-copy process in the device is licensed for non-commercial home use only. Reverse engineering or disassembly is prohibited. Please contact your nearest Philips Semiconductors sales office for more information.
· Power-save modes
· Joint Test Action Group (JTAG) boundary scan test
· Monolithic CMOS 3.3 V device, 5 V tolerant I/Os
· QFP44 and BGA156 packages
· Same footprint as SAA7108E; SAA7109E

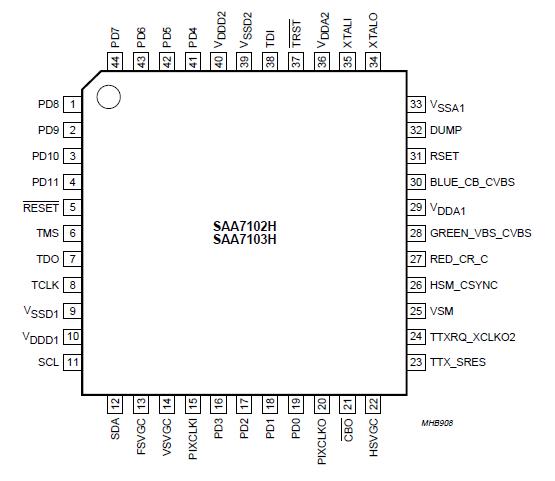

Pinout

  Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDDD digital supply voltage   -0.5 +4.6 V
VDDA analog supply voltage   -0.5 +4.6 V
Vo(A) output voltage at analog outputs   -0.5 VDDA + 0.5 V
Vi(D) input voltage at digital inputs and outputs outputs in 3-state;
note 1
-0.5 + 5.5 V
Vo(D) output voltage at digital outputs outputs active -0.5 VDDD + 0.5 V
VSS voltage difference between VSSA(n) and VSSD(n)   - 100 mV
Tstg storage temperature   -65 +150 °C
Tamb ambient temperature   0 70 °C
Vesd electrostatic discharge voltage all pins note 2 -2000 ±2000 V

Notes
1. Except pin XTALI.
2. Human body model: equivalent to discharging a 100 pF capacitor through a 1.5 k resistor.



Description

The SAA7102; SAA7103 is used to encode PC graphics data at maximum 800 ´ 600 resolution to PAL (50 Hz) or NTSC (60 Hz) video signals. A programmable scaler and interlacer ensures properly sized and flicker-free TV display as CVBS or S-video output.

Alternatively, the three Digital-to-Analog Converters (DACs)SAA7102; SAA7103 can output RGB signals together with a TTL composite sync to feed SCART connectors.

When the scaler/interlacer is bypassed, a second VGA monitor of SAA7102; SAA7103 can be connected to the RGB outputs and separate H and V-syncs as well, thereby serving as an auxiliary monitor at maximum 800 ´ 600 resolution/60 Hz (PIXCLK < 45 MHz).

The SAA7102; SAA7103 include a sync/clock generator and on-chip DACs.
