Features:

· One chip full digital Auto Focus (AF), Auto Exposure (AE) and Auto White Balance (AWB)
· Possible to use NTSC and PAL CCD with horizontal resolution of 510, 670, 720 or 768 pixels
· No manual adjustment
· One microprocessor system commonly used with CAMera Digital Signal Processor (CAMDSP) SAA9750H
· 8-bit parallel microprocessor interface
· LQFP64 package (0.5 mm pitch)
· Single 3 V power supply.


Pinout

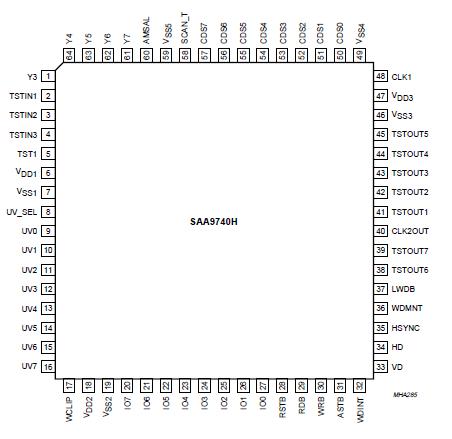

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VDD supply voltage -0.5 +5.0 V
Ptot total power dissipation - 83 mW
VI input voltage -0.5 VDD + 0.5 V
VO output voltage -0.5 VDD + 0.5 V
Tstg storage temperature -65 +150 °C
Tamb operating ambient temperature -20 +70 °C
Ves electrostatic handling; note 1 -2000 +2000 V
LTCH latch-up protection 100 - mA

Note
1. Equivalent to discharging a 100 pF capacitor through a 1.5 k series resistor.


Description

The Advanced Auto Control Function (A2CF) is to be used for a colour CCD camera system. SAA9740H can realize AWB, AF and AE with a microprocessor. SAA9740H consists of an input data selector, a parallel 8-bit microprocessor interface, a data accumulator, a window generator, a command decoder and AWB, AF, AE for each processing block.
