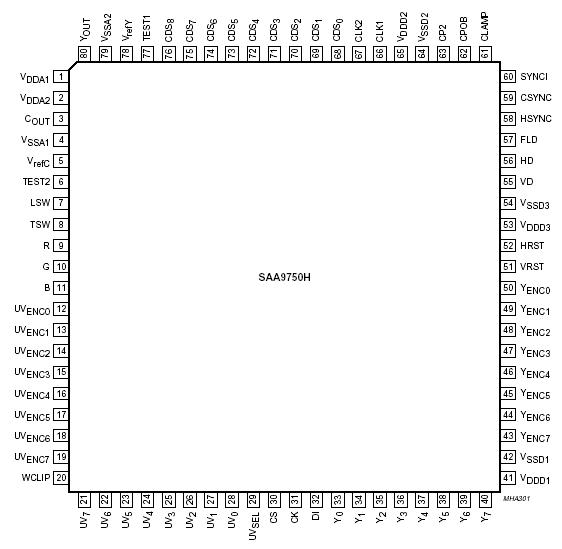

SAA9750H

· Y/C separator for mosaic filter colour CCD which can be used with PAL or NTSC CCDs with horizontal resolution of 510, 670, 720 or 768 pixels
· Line sequential colour processing (R-Y) and (B-Y)
· 9 bit input signal (the internal processing is 10-bit)
· Digital feedback clamp control for Y/C separation
· Two 768 × 9 line memories for Y/C separation
· Aperture correction using phase linear filters
· Coring of LOW level signals to reduce noise
· Colour encoder in accordance with the PAL or NTSC system. Colour subcarrier is made by a discrete time oscillator (DTO) operating on system clock
· Slew rate controlled outputs for reduction of digital noise
· Sync Signal Generator (SSG) to generate all necessary timing signals
· Serial interface for microprocessor control of CAMDSP settings
· Y and C signals accessible to incorporate digital features
· Including digital feature functions (mosaic, sepia, solarization, slice and negative/positive inversion).
· RGB inputs for title mix
· High accuracy 8 bit DAC outputs for luminance and chrominance signals

The Camera Digital Signal Processor (CAMDSP)SAA9750H  is intended for use with a mosaic filter colour CCD. The IC generates luminance and chrominance signals from the CCD signal. SAA9750H consists of a luminance and colour separator employing two 768 ´ 9 line memories, a PAL/NTSC encoder, a dual 8-bit video DAC, a Sync Signal Generator (SSG) and a simple serial interface to control many settings.
