SAB-C502

Features: ` Fully compatible to standard 8051 microcontroller` Versions for 12 / 20 MHz operating frequency` 16 K´8 ROM (SAB-C502-2R only)` 256´8 RAM` 256´8 XRAM (additional on-chip RAM)` Eight datapointers for indirect addressing of program and external data memory (including XR...

product image

SAB-C502 Picture
See larger image
SeekIC No. : 004484175 Detail

SAB-C502: Features: ` Fully compatible to standard 8051 microcontroller` Versions for 12 / 20 MHz operating frequency` 16 K´8 ROM (SAB-C502-2R only)` 256´8 RAM` 256´8 XRAM (additional on-chi...

SAB-C502 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAB-C502
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2026/1/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Fully compatible to standard 8051 microcontroller
` Versions for 12 / 20 MHz operating frequency
` 16 K´8 ROM (SAB-C502-2R only)
` 256´8 RAM
` 256´8 XRAM (additional on-chip RAM)
` Eight datapointers for indirect addressing of program and external data memory (including XRAM)
` Four 8-bit ports
` Three 16-bit Timers / Counters (Timer 2 with Up/Down Counter feature)
` USART
` Six interrupt sources, two priority levels
` Programmable 15-bit Watchdog Timer
` Oscillator Watchdog
` Fast Power On Reset
` Power Saving Modes
` P-DIP-40 and P-LCC-44 packages
` Temperature ranges: SAB-C502 TA :0 to 70   SAF-C502 TA : 40 to 85


Pinout

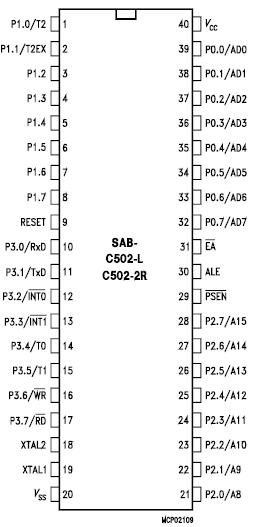

Connection Diagram


Specifications

Ambient temperature under bias (TA) ..................................... 40 to + 85
Storage temperature (TST).................................................... 65 to + 150
Voltage on VCC pins with respect to ground (VSS) .................. 0.5 V to 6.5 V
Voltage on any pin with respect to ground (VSS) .......... 0.5 V to VCC + 0.5 V
Input current on any pin during overload condition.......... 10 mA to + 10 mA
Absolute sum of all input currents during overload condition .............|100 mA|
Power dissipation........................................................................................TBD
Note: Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage of the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for longer periods may affect device reliability. During overload conditions (VIN > VCC or VIN < VSS) the
Voltage on VCC pins with respect to ground (VSS) must not exceed the values defined by the absolute maximum ratings.
