SAB-C513AO

Features: • Full upward compatibility with standard 8051 microcontroller• Up to 16 MHz external operating frequency 750 ns instruction cycle at 16 MHz operation• On-chip program memory C513AO-2R: 16 Kbytes ROM (with optional ROM protection) C513AO-2E: 16 Kbytes OTP C513AO-L: vers...

product image

SAB-C513AO Picture
See larger image
SeekIC No. : 004484179 Detail

SAB-C513AO: Features: • Full upward compatibility with standard 8051 microcontroller• Up to 16 MHz external operating frequency 750 ns instruction cycle at 16 MHz operation• On-chip program me...

SAB-C513AO Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAB-C513AO
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Full upward compatibility with standard 8051 microcontroller
• Up to 16 MHz external operating frequency
750 ns instruction cycle at 16 MHz operation
• On-chip program memory
C513AO-2R: 16 Kbytes ROM (with optional ROM protection)
C513AO-2E: 16 Kbytes OTP
C513AO-L: version without on-chip program memory (ROMless)
• Up to 64K byte external data memory
• 256 * 8 RAM
• 256 * 8 XRAM
• Four 8-bit digital I/O ports
• Three 16-bit timers/counters (Timer 2 with Up/Down and 16-bit auto-reload features)
• Full duplex serial interface (USART)
• Synchronous Serial Channel (SSC)
• Seven interrupt sources with two priority levels
• On-chip emulation support logic (Enhanced Hooks Emulation Technology™)
• Programmable 15-bit Watchdog Timer
• Oscillator Watchdog
• Fast Power On Reset
• Power Saving Modes
Slow-down mode
Idle mode
Software power-down mode with optional wake up capability through pin P3.2/INT0
• Available in P-DIP40-2, P-LCC-44-1 and P-MQFP-44-2 packages
• Fully pin-compatible with C501, C504, C505C, C505CA and C511/C513-devices.
• Temperature ranges: SAB-C513AO TA: 0 to 70 °C
                                     SAF-C513AO TA: 40 to 85 °C


Pinout

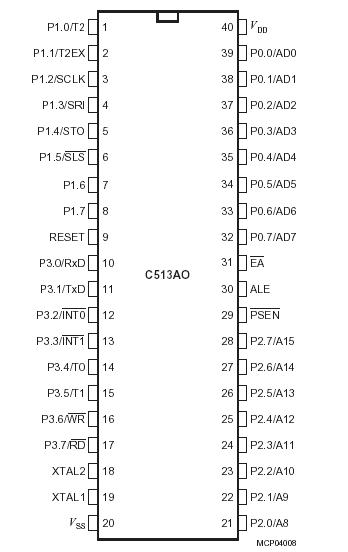

Connection Diagram


Specifications

Parameter Symbol Limit Values Unit Notes
min. max.
Storage temperature TST 65 150 °C -
Voltage on VDD pins with respect
to ground (VSS)		 VDD 0.5 6.5 V -
Voltage on any pin with respect
to ground (VSS)		 VIN 0.5 VDD + 0.5 V -
Input current on any pin during
overload condition		 - 10 10 mA -
Absolute sum of all input currents
during overload condition		 - - | 100 mA | mA -
Power dissipation PDISS - 1 W -

Note: Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage of the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for longer periods may affect device reliability. During absolute maximum rating overload conditions (VIN >VDD or VIN <VSS ) the voltage on VDD pins with respect to ground (VSS ) must not exceed the values defined by the absolute maximum ratings.
