SABC517A-LN

Features: • Two full duplex serial interfaces (USART) 4 operating modes, fixed or variabie baud rates programmable baud rate generators• Four 16-bit timer/counters Timer 0 / 1 (C501 compatible) Timer 2 for 16-bit reload, compare, or capture functions Compare timer for compare/capture f...

product image

SABC517A-LN Picture
See larger image
SeekIC No. : 004484187 Detail

SABC517A-LN: Features: • Two full duplex serial interfaces (USART) 4 operating modes, fixed or variabie baud rates programmable baud rate generators• Four 16-bit timer/counters Timer 0 / 1 (C501 comp...

SABC517A-LN Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SABC517A-LN
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Two full duplex serial interfaces (USART)
4 operating modes, fixed or variabie baud rates
programmable baud rate generators
• Four 16-bit timer/counters
Timer 0 / 1 (C501 compatible)
Timer 2 for 16-bit reload, compare, or capture functions
Compare timer for compare/capture functions
• Powerful 16-bit compare/capture unt (CCU) with up to 21 high-speed or PWM output channels and 5 capture inputs
• 10-bit A/D converter
12 multiplexed analog inputs
Built-in self calibration
• Extended watchdog facilities
15-bit programmable watchdog timer
Oscillator watchdog
• Power saving modes
Slow down mode
Idle mode (can be combined with slow down mode)
Software power-down mode
Hardware power-down mode
• 17 interrupt sources (7 external, 10 internal) selectable at 4 priority levels
• P-MQFP-100 and P-LCC-84 packages
• Temperature Ranges : SAB-C517A TA = 0 to 70 °C
                                    SAF-C517A TA = -40 to 85 °C
                                  SAH-C517A TA = -40 to 110 °C


Pinout

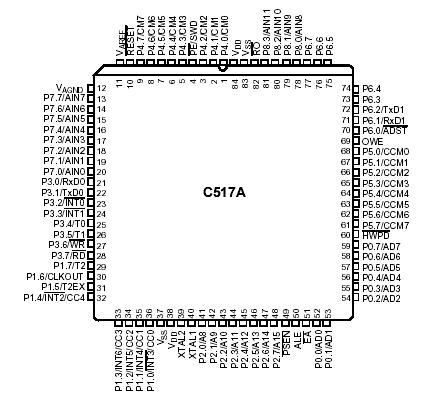

Connection Diagram


Specifications

Parameter Symbol Limit Values Unit Notes
min. max.
Storage temperature TST 65 150 °C -
Voltage on VDD pins with respect
to ground (VSS)		 VDD 0.5 6.5 V -
Voltage on any pin with respect
to ground (VSS)		 VIN 0.5 VDD + 0.5 V -
Input current on any pin during
overload condition		 - 10 10 mA -
Absolute sum of all input currents
during overload condition		 - - | 100 mA | mA -
Power dissipation PDISS - TBD W -

Note: Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage of the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for longer periods may affect device reliability. During absolute maximum rating overload conditions (VIN >VDD or VIN <VSS ) the voltage on VDD pins with respect to ground (VSS ) must not exceed the values defined by the absolute maximum ratings.
