SAF82532

Features: • Two independent full duplex serial channels On chip clock generation or external clock source On chip DPLL for clock recovery of each channel Two independent baud rate generators Independent time-slot assignment for each channel with programmable time-slot length (1 . 256 bit...

product image

SAF82532 Picture
See larger image
SeekIC No. : 004484214 Detail

SAF82532: Features: • Two independent full duplex serial channels On chip clock generation or external clock source On chip DPLL for clock recovery of each channel Two independent baud rate generator...

SAF82532 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAF82532
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Two independent full duplex serial channels
   On chip clock generation or external clock source
   On chip DPLL for clock recovery of each channel
   Two independent baud rate generators
   Independent time-slot assignment for each
   channel with programmable time-slot length
   (1 . 256 bits)
• Async, sync character oriented
   (MONOSYNC/BISYNC) or HDLC/SDLC modes
   (including SDLC LOOP)
• Transparent receive/transmit of data bytes without
   framing
• NRZ, NRZI, FM and Manchester encoding
• Modem control lines (RTS, CTS, CD)
• CRC support:
   HDLC/SDLC: CRC-CCITT or CRC-32 (automatic
   handling for transmit/receive direction)
   BISYNC: CRC-16 or CRC-CCITT (support for transmit direction)


Application

• Universal, multiprotocol communication board for Workstation- and PC-boards
• Terminal controllers
• Computer peripherals
• Time slotted packet networks
• Multimaster communication networks
• LANs

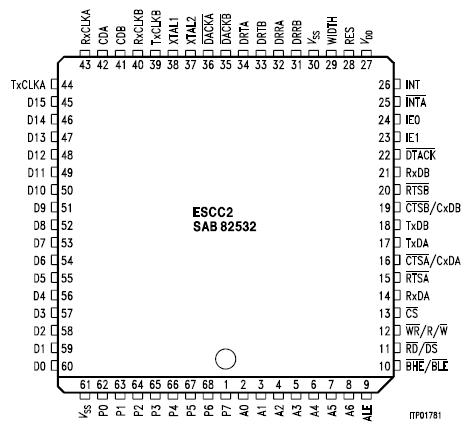

Pinout

Connection Diagram
