SAM9733

• Single-chip Synthesizer + Effects, Typical Applications Include: Wavetable Synthesis, Serial MIDI-In and -Out, MPU-401 (UART) Effects: Reverb + Chorus on MIDI and/or Audio-in Surround on Two or Four Speakers with Intensity/Delay Control Four-band Parametric Equalizer Audio-in Processing through Reverb, Chorus, Equalizer, Surround Independent Microphone Echo Function for Karaoke
• High-quality Wavetable Synthesis 16-bit Samples, 44.1 kHz Sampling Rate, 24 dB Digital Filter per Voice Up to 64-voice Polyphony
• High Performance RISC Structure for Sound Synthesis/Processing CISC Structure for MIDI/MPU-401 Communication and Housekeeping
• Available Wavetable Firmwares and Sample Sets CleanWave8® Low-cost General MIDI(GM) 1 MB Firmware + Sample Set CleanWave32® Top-quality 4 MB Firmware + Sample Set Other Sample Sets Available Under Special Conditions
• Compatible Firmware and Sounds Compatible with SAM9407/SAM9503 New Applications Can be Developed Using Dream® SAM9407 Standard Development Tools
• Low Voltage, Low Power Single Low-frequency Crystal Operation and Built-in PLL Minimize RFI I/O from 3V to 5.5V, Core 3.3V ± 10% Power-down Mode

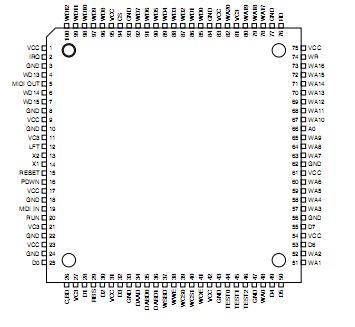

• Low Cost Industry-standard 100-lead PQFP Package
• Typical Applications- PC Sound Cards with the Best Quality/Price Ratio Computer Karaokes, Portable Karaokes Keyboards, Portable Keyboard Instruments

The SAM9733 is a low-cost derivative of the SAM9407 and SAM9503. It retains thesame high-quality synthesis with polyphony up to 64 voices. The SAM9733 maximumwavetable memory is 4 MB and the ISA bus communication is through a standardMPU-401. The SAM9733 is delivered in an industry-standard 100-lead plastic quadflat pack package (PQFP100).

The highly-integrated architecture of the SAM9733 combines a specialized high-per-formance RISC-based digital signal processor (Synthesis/DSP) and a general-purpose 16-bit CISC-based control processor on a single chip. An SAM9733 on-chip memorymanagement unit (MMU) allows the synthesis/DSP and the control processor to shareexternal ROM and/or RAM memory devices. An intelligent peripheral I/O interfacefunction handles other I/O interfaces, such as the ISA PC bus, the on-chip MIDIUART, and the Codec control interface, with minimum intervention from the controlprocessor
