SAM9793

• Synthesizer, Reverb, Chorus on a Single Chip
• No External ROM or RAM
• Single-chip All-in-one Design, Only Requires External DAC MIDI Control Processor, Serial and Parallel Interface Synthesis Compatible Effects: Reverb and Chorus Programmable Spatial Effects or Four-channel Surround(1)3DMIDI™: Four-speaker MIDI(1) 4-band Stereo Equalizer
• State-of-the-Art Synthesis for Best Quality/Price Products 38-voice Polyphony + Effects On-chip Wavetable Data, Firmware, RAM Delay Lines
• Synthesizer Chipset: SAM9793 + DAC
• Hardware-programmable DAC Mode I2S 16 to 20 Bits Japanese 16 Bits
• Typical Applications: Cost-sensitive PC Wavetable Synthesis/VCD Karaoke/Musical Instruments

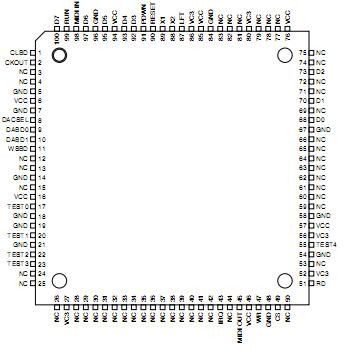

• 100-lead PQFP Package: Easy Mounting
• Ideal for Battery Operation Low Power Power-down Mode Wide Supply Voltage Range: 2.45V to 2.95V Core, 3V to 5.5V Periphery

The SAM9793 provides a single-chip, low-cost MIDI sound system. Equipped with aparallel MIDI input, it provides state-of-the-art sound synthesis together with a rangeof compatible effects. Its low power consumption makes it ideal for battery-poweredapplications such as portable Karaoke or VCD Karaoke systems. SAM9793 can also be usedfor cost-sensitive PC-based wavetable synthesis applications.
