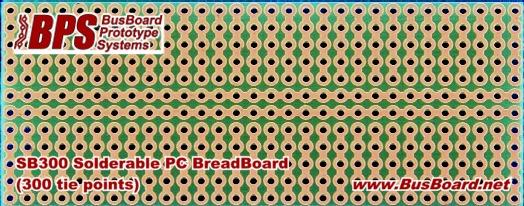

SB300 evaluate
US $2.15 - 2.39 / Piece

Prototyping Products 300 TIE POINT SLDR PC BDBOARD
SB300-05H evaluate
Features: · Low forward voltage (VF max=0.55V).· Fast reverse recovery time (trr max=90ns).· Low s...
SB300-05R evaluate
Features: · Low forward voltage (VF max=0.55V).· Fast reverse recovery time (trr max=90ns).· Low s...

Product Details

Description

Features:

· Low forward voltage (V_Fmax=0.85V).
· Fast reverse recovery time (t_rr max=70ns).
· Low switching noise.
· Low leakage current and high reliability due to highly reliable planar structure.
· Micaless package facilitating easy mounting.

Application

· High frequency rectification (switching regulators,converters, choppers).

Specifications

Parameter	Symbol	CONDITIONS	Ratings	Unit
Repetitive Peak Reverse Voltage	V_RRM		-90	V
Nonrepetitive Peak Reverse Surge Voltage	V_RSM		-95	V
Average Output Current	Io	50Hz, resistive load, Tc=59˚C	30	A
Surge Forward Current	I_FSM	50Hz sine wave, 1cycle	180	A
Junction Temperature	T_J		-55 to+125	˚C
Storage Temperature	T_STG		-55 to+125	˚C
