SC1153

Features: •Low cost / full featured•Synchronous operation•5 Bit VID programmable output•On-chip power good and OVP functions•Designed to meet Intel VRM 8.4 (Pentium® IlI)•1.3V to 3.5V Range, 1% toleranceApplication• Pentium® IlI Core Supply• ...

product image

SC1153 Picture
See larger image
SeekIC No. : 004485425 Detail

SC1153: Features: •Low cost / full featured•Synchronous operation•5 Bit VID programmable output•On-chip power good and OVP functions•Designed to meet Intel VRM 8.4 (Pentium®...

SC1153 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SC1153
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•Low cost / full featured
•Synchronous operation
•5 Bit VID programmable output
•On-chip power good and OVP functions
•Designed to meet Intel VRM 8.4 (Pentium® IlI)
•1.3V to 3.5V Range, 1% tolerance




Application

• Pentium® IlI Core Supply
• Multiple Microprocessor Supplies
• Voltage Regulator Modules (VRM)
• Programmable Power Supplies
• High Efficiency DC/DC Conversion




Pinout

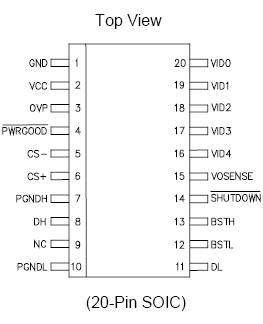

Connection Diagram


Specifications

Parameter Symbol Maximum Units
VCC to GND VIN -0.3 to +7 V
PGND to GND   ± 1 V
BST to GND   -0.3 to 15 V
Thermal Resistance Junction to Case JC 30 °C/W
Thermal Resistance Junction to Ambient JA 90 °C/W
Operating Temperature Range TA 0 to +70 °C
Storage Temperature Range TSTG -65 to +150 °C
Lead Temperature (Soldering) 10 seconds TL 300 °C



Description

The SC1153 is a low-cost, full featured, synchronous voltage-mode controller designed for use in single ended power supply applications where efficiency is of primary concern. Synchronous operation allows for the elimination of heat sinks in many applications. The SC1153 is ideal for implementing DC/DC converters needed to power advanced microprocessors, such as Pentium® lll, in both single and multiple processor configurations. Internal level-shift, high-side drive circuitry, and preset shoot-thru control, allows for use of inexpensive n-channel power switches.

SC1153 features include an integrated 5-bit VID DAC, temperature compensated voltage reference, triangle wave oscillator, current limit comparator, frequency shift over-current protection, and an accessible, internally compensated error amplifier. Power good signaling, logic compatible shutdown, and over voltage protection are also provided.

The SC1153 operates at a fixed 200KHz, providing an optimum compromise between efficiency, external component size, and cost.
