Purchase SC1406, In-stock SC1406 From SeekIC.
Part Number: SC1406
Description: The SC1406 is a High Speed, High performance Hysteretic Mode controller. It is part of a two chip solu...
- Table of contents:
SC1406
-
Suppliers
DataSheet
General Description
SC1406 General Description
The SC1406 is a High Speed, High performance Hysteretic Mode controller. It is part of a two chip solution, with the SC1405 Smart Driver, providing power to advanced micro-processors. It uses a Dynamic Set Point switching technique along with an ultra-fast comparator to provide the control signal to an external high speed Mosfet driver. A 5-bit DAC sets the output voltage, thus providing a voltage resolution of 25mV.
The SC1406 is a High Speed, High performance Hysteretic Mode controller. It is part of a two chip solution, with the SC1405 Smart Driver, providing power to advanced micro-processors. It uses a Dynamic Set Point switching technique along with an ultra-fast comparator to provide the control signal to an external high speed Mosfet driver. A 5-bit DAC sets the output voltage, thus providing a voltage resolution of 25mV.
SC1406 Maximum Ratings
| PARAMETER | SYMBOL | MAXIMUM | UNITS |
| VCC Supply Voltage | VmaxVCC | 7 | V |
| Low Battery Input | LBIN | 7 | V |
| Input & Output Pins | VCC + 0.3 GND - 0.3 |
V | |
| Enable | EN | 7 | V |
| Operating Junction Temperature | TJ | 0 to +125 | °C |
| Lead Temperature (Soldering) 10 seconds | TL | 700 | °C |
| Storage Temperature | TSTG | -65 to 150 | °C |
SC1406 Features
• High Speed Hysteretic controller provides high efficiency over a wide operating load range
• Inherently stable
• Complete power solution with two LDO drivers
• Programmable output voltage for Pentium® II & III Processors
SC1406 Typical Application
• Laptop and Notebook computers
• High performance Microprocessor based systems
• High efficiency distributed power supplies

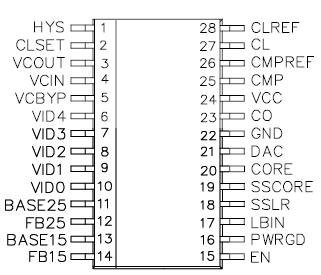

SC1406 Connection Diagram
SC1406
PDF/DataSheet Download
- Datasheet: SC1406
- File Size: 122910 KB
- Manufacturer: SEMTECH [Semtech Corporation]
- Click here to Download
