SC1406A

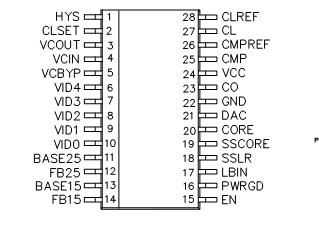

The SC1406A is a High Speed, High performance Hysteretic Mode controller. It is part of a two chip solution, with the SC1405 Smart Driver, providing power to advanced micro-processors. It uses a Dynamic Set Point switching technique along with an ultra-fast comparator to provide the control signal to an external high speed Mosfet driver. A 5-bit DAC sets the output voltage, thus providing a voltage resolution of 25mV.

SC1406A has two on-chip linear regulators which drive external PNP transistors with output voltage settings of 1.5V and 2.5Vdc. The linear regulator drivers have a separate soft start. A PWRGD TTL level signal is asserted when all voltages are within specifications.The part features Low Battery Detect and Undervolt-age Lock-Out for the main Hysteretic controller to assure V-DC is within acceptable limits. An Over-Current comparator disables the main controller during an overcurrent condition using an externally pro grammable threshold.
