Part Number: SC1437
Description: The SC1437 is a battery over voltage detection circuit with driver for external MOSFET. The trip point is adjusta...
- Table of contents:
SC1437
-
Suppliers
DataSheet
General Description
SC1437 General Description
The SC1437 is a battery over voltage detection circuit with driver for external MOSFET. The trip point is adjustable with an external resistor divider connected to the SENSE pin. The trip point is preset to a nominal trip voltage of 4.2V if no external divider is used. Other internal trip voltages of 4.5V and 4.7V are available, specified by different part numbers. An internal delay, with two selectable times or bypass, is on-board to suppress accidental over voltage conditions due to glitches on the battery supply volt-age, V+. The delay is externally adjustable by pulling the SEL pin high, low, or left floating. During an actual over voltage condition, the internal driver will pull the over voltage pin (OV) down to the voltage present at the V- pin. This insures the external N-Channel MOSFET will be completely off during an over voltage condition.
Supply current during the monitoring mode of operation is ap-proximately 10µA. If an over voltage condition is detected, supply currents increase when the timer is started. A voltage comparator will engage at voltages greater than 6.8V, which bypasses the timer and open circuits the battery by turning off the external MOSFET. This important function protects the battery during the timer delay in the event of a charger failure. There are three functional options available. With the B option the OV pin is active low. With the L option the OV pin is active high. With the H option the OV pin is open drain, active high. All options are available in a 5 lead SOT-23 package.
SC1437 Features
Low quiescent current, less than 10µA typical
Input voltage range 1.8V to 6.8V
Adjustable or preset voltage trip point
Selectable timer delays of 0, 40 and 80ms without use of external resistor
SOT-23 5 lead package
Accuracy is 2% over specified temperature range
30V maximum rating
Input voltage range 1.8V to 6.8V
Adjustable or preset voltage trip point
Selectable timer delays of 0, 40 and 80ms without use of external resistor
SOT-23 5 lead package
Accuracy is 2% over specified temperature range
30V maximum rating
SC1437 Typical Application
Battery packs
Portable electronics
Lithium Ion protection circuits
Programmable Fuse
Power Monitoring
CPU Reset Circuits
Portable electronics
Lithium Ion protection circuits
Programmable Fuse
Power Monitoring
CPU Reset Circuits

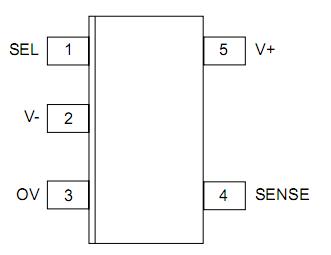

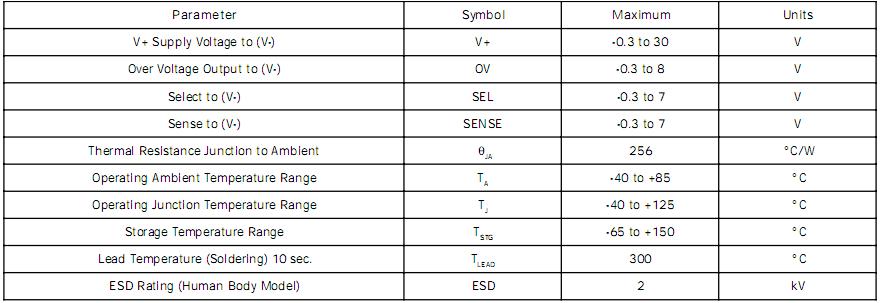

SC1437 Connection Diagram
SC1437
PDF/DataSheet Download
- Datasheet: SC1437
- File Size: 102197 KB
- Manufacturer: SEMTECH [Semtech Corporation]
- Click here to Download
