General Description
SC14405 General Description
The SC14405 is a CMOS chip optimized to handle all the audio, signal and data processing needed within a DECT handset. An ADPCM transcoder, a very low power CODEC and Analog Frontend is integrated. Direct connections towards microphone and a (dynamical) loudspeaker are provided. Duplex quality handsfree operation is integrated.
The SC14405 is designed to fit to any radio design.
A dedicated TDMA controller handles all physical layer slot formats and radio control.
National Semiconductors standard CompactRISCTM CR16B 16 bit microcontroller takes care of all the higher protocol stack. 4 kByte Flash is integrated for parameter and number storage.
The SC14405 has an 125 segment LCD controller.
SC14405 Features
* Integrated DECT Baseband transceiver optimized for
GAP handsets according to ETS 300 175-2, 175-3 &
175-8.
* Two on board low drop voltage regulators with 2.85V
and 3.0- 3.8V (with external resistors the voltage can be
determined) output.
* 2V upto 3.6V battery input with onboard step up converter.
* 3V upto 5.0V battery monitor input.
* Advanced battery management unit
* Very low power in active and paging mode.
* Embedded 16 bit CompactRISCTM Micro Controller.
(CR16B) with programmable clock speeds.
* 4k byte memory mapped Flash
* 128 kbyte Flash or factory programmed ROM FLASH.
* 125 segment LCD controller using 5 backplanes
* ACCESSBUSTM or MICROWIRETM interfaces
* 5,5 kByte on-chip Data Memory.
* One full duplex ADPCM transcoder.
* On-chip 14-bit linear CODEC.
* 14 upto 44 dB gain differential microphone input buffer.
* 100 W loudspeaker driver.
* Software controlled gain on audio input and output.
* Peak hold ADC for RSSI measurement.
* Five general purpose inputs can be multiplexed on an
8 bit ADC with selectable ranges.
* On-chip dedicated TDMA instruction co-processor
which supports 1.152 MHz, 0.576 MHz and 0.288 MHz
bit rates..
* 7programmable control signals for radio front end.
* Full and double slot, protected and unprotected Bfields.
Duplex quality handsfree operation.
* Tone generator. 3 parallel tones can be programmed
* Linear PCM interface for external codec.
* Four general purpose ports. Three as input/output, one
as output only.
GAP handsets according to ETS 300 175-2, 175-3 &
175-8.
* Two on board low drop voltage regulators with 2.85V
and 3.0- 3.8V (with external resistors the voltage can be
determined) output.
* 2V upto 3.6V battery input with onboard step up converter.
* 3V upto 5.0V battery monitor input.
* Advanced battery management unit
* Very low power in active and paging mode.
* Embedded 16 bit CompactRISCTM Micro Controller.
(CR16B) with programmable clock speeds.
* 4k byte memory mapped Flash
* 128 kbyte Flash or factory programmed ROM FLASH.
* 125 segment LCD controller using 5 backplanes
* ACCESSBUSTM or MICROWIRETM interfaces
* 5,5 kByte on-chip Data Memory.
* One full duplex ADPCM transcoder.
* On-chip 14-bit linear CODEC.
* 14 upto 44 dB gain differential microphone input buffer.
* 100 W loudspeaker driver.
* Software controlled gain on audio input and output.
* Peak hold ADC for RSSI measurement.
* Five general purpose inputs can be multiplexed on an
8 bit ADC with selectable ranges.
* On-chip dedicated TDMA instruction co-processor
which supports 1.152 MHz, 0.576 MHz and 0.288 MHz
bit rates..
* 7programmable control signals for radio front end.
* Full and double slot, protected and unprotected Bfields.
Duplex quality handsfree operation.
* Tone generator. 3 parallel tones can be programmed
* Linear PCM interface for external codec.
* Four general purpose ports. Three as input/output, one
as output only.

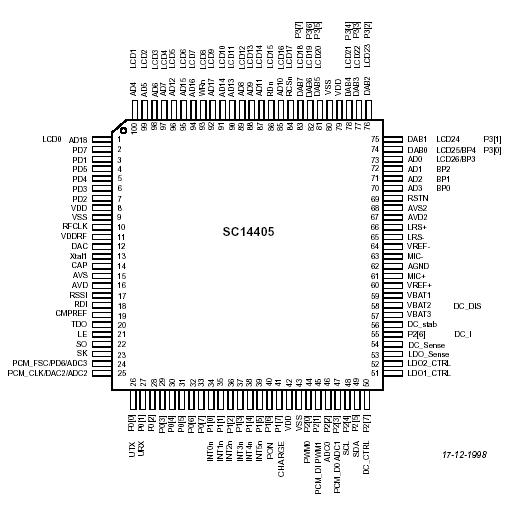

SC14405 Connection Diagram
SC14405
