Product Details

Description



Features:

• 350mV dropout @ 1.5A
• Adjustable output from 1.2V to 4.8V(1)
• 2.5V and 1.8V options (adjustable externally usingresistors)(1)
• Over current and over temperature protection
• Enable pin(1)
• 10µA quiescent current in shutdown(1)
• Low reverse leakage (output to input)
• Surface mount and through-hole packages
• Full industrial temperature range
Note:
(1) SO-8 and TO-220-5L packages only.


Application

• Battery powered systems
• Motherboards
• Peripheral cards
• PCMCIA cards

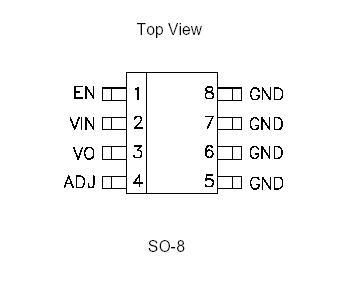

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Max
Units
Input Voltage
VIN
5.5
V
PowerDissipation
PD
InternallyLimited
W
ThermalResistanceJunctiontoAmbient
SO-8(1)
SOT-223
TO-220-X

JA

65
63
50

/W
Thermal Resistance Junction to Case
SO-8
SOT-223
TO-220-X

JC


39
27
3

/W
OperatingAmbientTemperatureRange
TA
-40 to 85
OperatingJunctionTemperatureRange
TJ
-40 to 150
Storage Temperature Range
TSTG
-65 to 150
Lead Temperature (Soldering) 10Sec.
TLEAD
300
ESD Rating (Human body model)
ESD
4
kV



Description



The SC1565 is a high performance positive voltageregulator designed for use in applications requiring verylow dropout voltage at up to 1.5 Amps. Since it hassuperior dropout characteristics compared to regularLDOs, it can be used to supply 2.5V on motherboardsor 2.8V on peripheral cards from the 3.3V supply thusallowing the elimination of costly heatsinks.Additionally, the 5-lead TO-220 and SO-8 versionshave an enable pin to further reduce power dissipationwhile shut down. The SC1565 provides excellentregulation over variations in line, load and temperature.

The SC1565 is available in the popular SO-8 surfacemount package with two internally preset output voltageoptions, which are also adjustable using externalresistors. Also available are 5-lead and 3-lead TO-2202.5V options (fixed output only for the 3-lead option)and fixed output SOT-223 options.
