Part Number: SC4150
Description: The SC4150 is a negative voltage hotswap controller that allows the insertion of line cards into a liv...
- Table of contents:
SC4150
-
Suppliers
DataSheet
General Description
SC4150 General Description
The SC4150 is a negative voltage hotswap controller that allows the insertion of line cards into a live backplane. The inrush current is programmable and closed loop operation limits the maximum current even under short circuit conditions. A built in timing circuit prevents false shutdown. The signal from the drain voltage is fed to the timer, providing safety for the MOSFET when in linear mode. The SC4150 latches off under abnormal condition and attempts to restart after a time out period.
The device comes in two options, PWRGD (SC4150H) and PWRGD (SC4150L). These signals can be directly used to enable power modules.
SC4150 Maximum Ratings
|
Parameter |
Symbol |
Maximum |
Units |
| Supply Voltage |
VCC |
-0.3 to 100 |
V |
| DRAIN, PWRGD/ PWRGD |
-0.3 to 100 |
V | |
| SENSE, GATE |
-0.3 to 20 |
V | |
| UV, OV |
-0.3 to 60 |
V | |
| Thermal Resistance Junction to Ambient |
JA |
163 |
|
| Thermal Resistance Junction to Case |
JC |
38.8 |
|
| Operating Junction Temperature Range |
TJ |
-40 to 125 |
|
| Storage Temperature Range |
TSTG |
-65 to 150 |
|
| Lead Temperature (Soldering) 10 sec |
TLEAD |
300 |
SC4150 Features
·Programmable slew of the inrush current when used for hot insertion in the negative 24V and 48V backplane
·Closed loop operation limits the maximum current even in short circuit condition
·Built in timer prevents false shutdown, when the closed loop operation limits the current.
·Sensing the drain voltage allows for immediate shutdown in short circuit condition, where current spikes and noise is ignored.
·Power good signal
·Input UVLO and OVLO sensing
·SO-8 package
·Closed loop operation limits the maximum current even in short circuit condition
·Built in timer prevents false shutdown, when the closed loop operation limits the current.
·Sensing the drain voltage allows for immediate shutdown in short circuit condition, where current spikes and noise is ignored.
·Power good signal
·Input UVLO and OVLO sensing
·SO-8 package
SC4150 Typical Application
·Central office switching
·-48V Distributed power systems
·Power supply hotswap & inrush control
·-48V Distributed power systems
·Power supply hotswap & inrush control

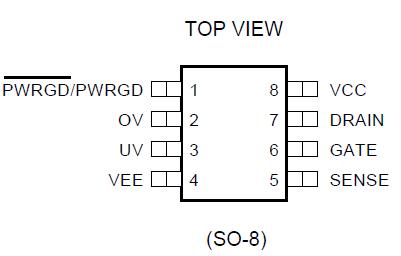

SC4150 Connection Diagram
SC4150
PDF/DataSheet Download
- Datasheet: SC4150
- File Size: 389500 KB
- Manufacturer:
- Click here to Download
- ·SC4000
- PHILIPS [Philips Semiconductors]
- Universal Timeslot Interchange
- 184010 KB
- ·SC4002A
- ETC [ETC]
- LCD MODULES SC4002A ( 40 CHARACTERS x 2 LINES )
- 102332 KB
- ·SC4004A
- ETC [ETC]
- LCD MODULES 40 CHARACTERS x 4 LINES
- 98047 KB
- ·SC40-18EWA
- KINGBRIGHT [Kingbright Corporation]
- 100mm (4.0inch) SINGLE DIGIT NUMERIC DISPLAYS
- 189722 KB
- ·SC40-18GWA
- KINGBRIGHT [Kingbright Corporation]
- 100mm (4.0inch) SINGLE DIGIT NUMERIC DISPLAYS
- 189722 KB
- ·SC40-18SRWA
- KINGBRIGHT [Kingbright Corporation]
- 100mm (4.0inch) SINGLE DIGIT NUMERIC DISPLAYS
- 189722 KB
- ·SC40-18YWA
- KINGBRIGHT [Kingbright Corporation]
- 100mm (4.0inch) SINGLE DIGIT NUMERIC DISPLAYS
- 189722 KB
- ·SC40-19EWA
- KINGBRIGHT [Kingbright Corporation]
- 100mm (4.0inch) SINGLE DIGIT NUMERIC DISPLAYS
- 189722 KB
SC4150 Relative Products
SC41344
SC41343

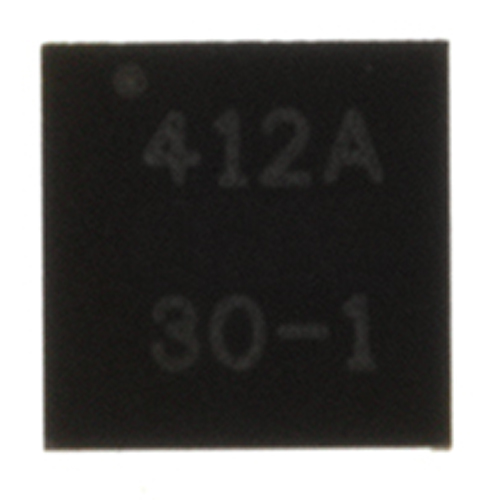

SC412AMLTRT
