Part Number: SC6121







D/C: 08+

Description: The SC6121 is a remote control transmitter utilizing CMOS Technology specially designed for use on inf...


Urgent Purchase

SC6121 General Description


The SC6121 is a remote control transmitter utilizing CMOS Technology specially designed for use on infrared remote control applications. It is capable of controlling 32 function keys and 3 double keys. SC6121 is housed in a 20-pins SO package.

SC6121 Maximum Ratings


Characteristic

Symbol

Value

Unit

Supply Voltage

VDD

6.0

V

Input Voltage
VIN
-0.3~VDD
V

Power Dissipation

Pd

250

mW

Storage Temperature

Tstg

-40 ~ +125

Operating Temperature

Topr

-20 ~ +75

SC6121 Features

* CMOS Technology
* Low Operating Voltage (VDD=2.0~5.5V)
* Using SEL pin, SC6121 can support 64+6 function codes
* Customer Code can be selected

SC6121 Typical Application

* TV and VCR
* Audio Equipment
* Cable TV Tuner
* Cassette Deck
* Air Conditioner
* VCD and DVD ROM/Player
* Moniputer/Multi-Media Personal Computer System

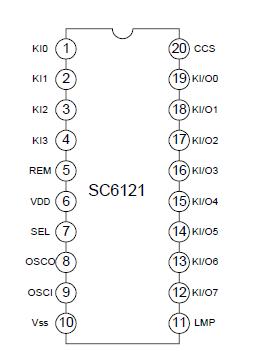

SC6121 Connection Diagram

SC6121 Connection Diagram

SC6121 datasheet

SC6121
PDF/DataSheet Download

  • Datasheet: SC6121
  • File Size: 141051 KB
  • Manufacturer: SILAN [Silan Microelectronics Joint-stock]
  • Click here to Download
