Features: Dual channel with Motorola P interface Up to 5 Mbit/s data rate 64-byte transmit FIFO 64-byte receive FIFO with error flags Programmable and selectable transmit and receive FIFO trigger levels for DMA and interrupt generation Software/hardware flow control*Programmable Xon/Xoff characte...
SC68C752B: Features: Dual channel with Motorola P interface Up to 5 Mbit/s data rate 64-byte transmit FIFO 64-byte receive FIFO with error flags Programmable and selectable transmit and receive FIFO trigger l...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol |
Parameter |
Conditions |
Min |
Max |
Unit |
VCC |
supply voltage | - |
7 |
V |
|
VI |
input voltage | -0.3 |
VCC + 0.3 |
V |
|
VO |
output voltage | -0.3 |
VCC + 0.3 |
V |
|
Tamb |
ambient temperature | operating in free-air |
-40 |
+85 |
°C |
Tstg |
storage temperature | -65 |
+150 |
°C |
The SC68C752B is a dual Universal Asynchronous Receiver/Transmitter (UART) with 64-byte FIFOs, automatic hardware/software flow control, and data rates up to 5 Mbit/s. The SC68C752B offers enhanced features. It has a Transmission Control Register (TCR) that stores receiver FIFO threshold levels to start/stop transmission during hardware and software flow control. With the FIFO Rdy register, the software gets the status of TXRDY/RXRDY for all four ports in one access. On-chip status registers provide the user with error indications, operational status, and modem interface control. System interrupts may be tailored to meet user requirements. An internal loopback capability allows on-board diagnostics.
The UART transmits data, sent to it over the peripheral 8-bit bus, on the TX signal and receives characters on the RX signal. Characters can be programmed to be 5 bits, 6 bits, 7 bits, or 8 bits. The UART has a 64-byte receive FIFO and transmit FIFO and can be programmed to interrupt at different trigger levels. The UART generates its own desired baud rate based upon a programmable divisor and its input clock. It can transmit even, odd, or no parity and 1, 1.5, or 2 stop bits. The receiver can detect break, idle, or framing errors, FIFO overflow, and parity errors. The transmitter can detect FIFO underflow. The UART also contains a software interface for modem control operations, and has software flow control and hardware flow control capabilities.

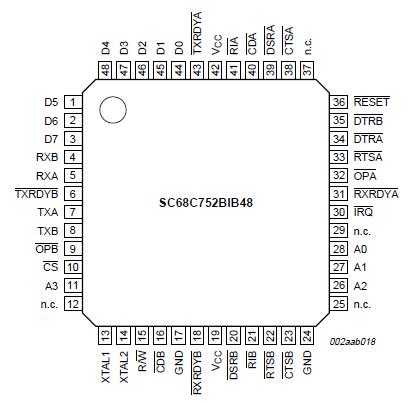

The SC68C752B is available in LQFP48 and HVQFN32 packages.
