General Description
SC70 General Description
The SGM3167 is a single, bidirectional, single-pole/double- throw (SPDT) CMOS analog switches designed to operate from a single +1.8V to +5.5V supply. It features high-bandwidth (600MHz) and low ON-resistance (9 typ), Targeted applications for audio switching.
SGM3167 features guaranteed on-resistance matching (0.3 max) between switches and guaranteed on-resistance flatness over the signal range (2.5 TYP). This ensures excellent linearity and low distortion when switching audio signals. SGM3167 is available in a SC70-6 package.
SC70 Maximum Ratings
V+ , IN to GND.....................................................- 0.3V to +6V
Analog, Digital voltage range(1)............. - 0.3V to (V+ + 0.3V)
Continuous Current NO, NC, or COM..........................±120mA
Peak Current NO, NC, or COM....................................±250mA
Operating Temperature Range....................- 40°C to +85°C
Junction Temperature.................................................+150°C
Storage Temperature................................- 65°C to +150°C
Lead Temperature (soldering, 10s)............................+260°C
ESD(HBM)....................................................................2000V
Analog, Digital voltage range(1)............. - 0.3V to (V+ + 0.3V)
Continuous Current NO, NC, or COM..........................±120mA
Peak Current NO, NC, or COM....................................±250mA
Operating Temperature Range....................- 40°C to +85°C
Junction Temperature.................................................+150°C
Storage Temperature................................- 65°C to +150°C
Lead Temperature (soldering, 10s)............................+260°C
ESD(HBM)....................................................................2000V
SC70 Features
` Voltage Operation : 1. 8 V to 5. 5 V
` On-Resistance: 9 (typ) at 5.0V
` Fast Switching Time tON 20 ns tOFF 15 ns
` High Bandwidth: 600 MHz
` High Off-Isolation: 63dB at 10MHz
` Rail-to-Rail Operation
` TTL/CMOS Compatible
` Break-Before-Make Switching
` Extended Industrial Temperature Range:
40°C to 85°C
` Lead (Pb) Free SC70-6 Package
` On-Resistance: 9 (typ) at 5.0V
` Fast Switching Time tON 20 ns tOFF 15 ns
` High Bandwidth: 600 MHz
` High Off-Isolation: 63dB at 10MHz
` Rail-to-Rail Operation
` TTL/CMOS Compatible
` Break-Before-Make Switching
` Extended Industrial Temperature Range:
40°C to 85°C
` Lead (Pb) Free SC70-6 Package

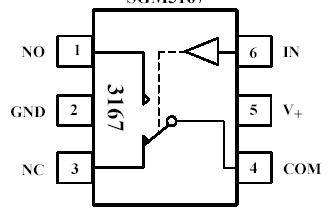

SC70 Connection Diagram
