Purchase SC7313S, In-stock SC7313S From SeekIC.
D/C:2008
Part Number: SC7313S
D/C: 2008
Description: The SC7313 is a volume, tone (bass and treble), balance (left/right) and fader(front/rear) processor f...
- Table of contents:
SC7313S
-
Suppliers
DataSheet
General Description
SC7313S General Description
The SC7313 is a volume, tone (bass and treble), balance (left/right) and fader(front/rear) processor for quality audio applications in car radio and Hi-Fi systems. Selectable input gain and external loudness function are provided. Control is accomplished by serial I2C bus microprocessor interface. The AC signal settings is obtained by resistor networks and switches combined with operational amplifiers. Due to the Used BIPOLAR/CMOS technology, low distortion, low noise and low DC stepping are obtained.
SC7313S Maximum Ratings
|
Characteristic |
Symbol |
Value |
Unit |
|
Supply Voltage |
VS |
10.2 |
V |
|
Operating Temperature |
Tamb |
-40 ~ +85 |
|
|
Storage Temperature |
Tstg |
-55 ~ +150 |
|
SC7313S Features
* Input multiplexer:
--3 stereo inputs
--Selectable input gain for optimal adaptation to different sources
* Four speaker attenuators:
--4 independent speakers control in 1.25dB steps for balance and fader facilities
--Independent mute function
* All functions programmable via serial I2C Bus
* Loudness function
* Volume control in 1.25dB steps
* Treble and bass control
* Input and output for external equalizer or noise reduction system
--3 stereo inputs
--Selectable input gain for optimal adaptation to different sources
* Four speaker attenuators:
--4 independent speakers control in 1.25dB steps for balance and fader facilities
--Independent mute function
* All functions programmable via serial I2C Bus
* Loudness function
* Volume control in 1.25dB steps
* Treble and bass control
* Input and output for external equalizer or noise reduction system

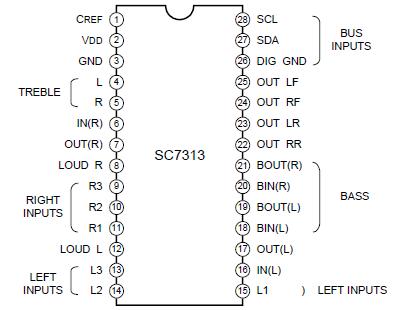

SC7313S Connection Diagram
SC7313S
PDF/DataSheet Download
- Datasheet: SC7313S
- File Size: 154403 KB
- Manufacturer: SILAN [Silan Microelectronics Joint-stock]
- Click here to Download
