Part Number: SC7461





Package Cooled: DIP/SOP

D/C: 08+

Description: The SC7461 is a remote control transmitter utilizing CMOS Technology specially designed for infrared a...


Urgent Purchase

SC7461 General Description


The SC7461 is a remote control transmitter utilizing CMOS Technology specially designed for infrared applications. It is capable of controlling 32 function keys and 3 double keys. SC7461 is housed in 24 pins, SO Package and provides 13 bits Custom Code.

SC7461 Maximum Ratings

Characteristic
Symbol
Description
Value
Unit
Maximum Supply Voltage
VDD(max)
VDD
Vss-0.3~10
V
Input Voltage
VIN
Each Input pin
Vss-0.3~VDD+0.3
V
Output Voltage
VOUT
--
Vss-0.3~VDD+0.3
V
Output Current
IOUT
OUT
-35
mA
Allowable Power Dissipation
Pd(max)
Ta<=85°C
150
mW
Storage Temperature
Tstg
--
-40~+125
°C
Operating Temperature
Topr
--
-10~+70
°C

SC7461 Features

* CMOS Technology
* Low Power Consumption
* 32+3 Function Keys
* Least External Components
* Wide range of operating voltage: VDD=2.0~5.5V
* Double key operation(No order of priority given)
* On-Chip Oscillator can be constructed using an externally connected ceramic resonator
* Up to 64 Custom Codes may be selected externally for SC7461

SC7461 Typical Application

* TV and VCR
* Audio Equipment

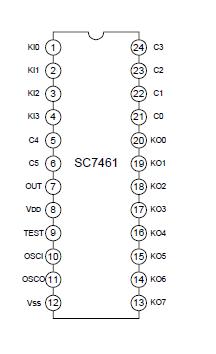

SC7461 Connection Diagram

SC7461 Connection Diagram

SC7461 datasheet

SC7461
PDF/DataSheet Download
