Part Number: SC75823







D/C: 08+

Description: The SC75823 is a general-purpose LCD driver that can be used for frequency display in microprocessor-c...


Urgent Purchase

SC75823 General Description


The SC75823 is a general-purpose LCD driver that can be used for frequency display in microprocessor-controlled radio receives and in other display applications. In addition to being able to directly drive up to 156 LCD segments.

SC75823 Maximum Ratings

         Characteristic

Symbol

Value

Unit

Maximum Supply Voltage

VDDmax

-0.3 to +6.5

V

Input Voltage

VIN1

-0.3 to +6.5

V

VIN2
-0.3 to VDD+0.3
V
Output Voltage
VOUT
-0.3 to VDD+0.3
V

Output Current

VOUT1

300

A

VOUT2
3
mA

Allowable Power Dissipation

Pdmax

200

mW

Operating Temperature
Topr
-40 to +85


Storage Temperature

Tstg

-55 to 125



SC75823 Features

• Supports both 1/3 duty 1/2 bias and 1/3 duty 1/3 bias LCD drive of up to 156 segments under serial data control.
• Serial data input supports CCB format communication with the system controller.
• Serial data control of the power-saving mode based backup function and all the segments forced off function.
• High generality since display data is displayed directly without decoder intervention.
• The INH pin can force the display to the off state.
• The LCD drive bias voltage can be provided internally or externally.
• Power supply voltage: 4.5 to 6.0V

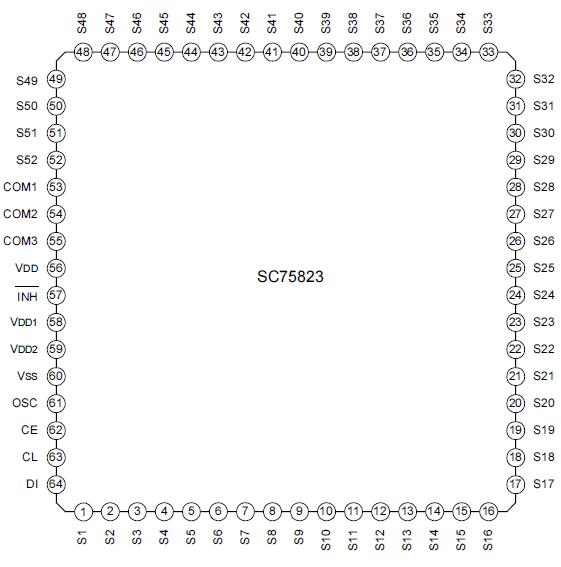

SC75823 Connection Diagram

SC75823 Connection Diagram

SC75823 datasheet

SC75823
PDF/DataSheet Download

  • Datasheet: SC75823
  • File Size: 560131 KB
  • Manufacturer: SILAN [Silan Microelectronics Joint-stock]
