SC806

Features: `Fully integrated charger with FET pass transistor, reverse-blocking diode, sense resistor and thermal protection`High Accuracy Charge Current*`Tiny 3mm x 3mm 10 lead MLP package`Programmable precharge, fastcharge and termination current`Battery voltage controlled to 1% accuracy`Battery ...

product image

SC806 Picture
See larger image
SeekIC No. : 004485717 Detail

SC806: Features: `Fully integrated charger with FET pass transistor, reverse-blocking diode, sense resistor and thermal protection`High Accuracy Charge Current*`Tiny 3mm x 3mm 10 lead MLP package`Programma...

SC806 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SC806
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Fully integrated charger with FET pass transistor, reverse-blocking diode, sense resistor and thermal protection
`High Accuracy Charge Current*
`Tiny 3mm x 3mm 10 lead MLP package
`Programmable precharge, fastcharge and termination current
`Battery voltage controlled to 1% accuracy
`Battery Charge Current accurate to 5% at 800mA
`Soft-start for step load and adapter plug-in
`Up to 1A continuous charge current
`Input voltage range from 3V to 6V allows seamless charging from current limited adapter
`0.1A battery drain current in shutdown and monitor modes
`Over current protection in all charging modes
`Automatic loss of battery detection
`Adapter Present, Charge Status, and No Battery output LED drivers


Application

·Cellular phones
·PDAs
·Handheld meters
·Charging stations
·USB chargers
·Digital cameras
·GPS Handhelds
·Programmable current source


Pinout

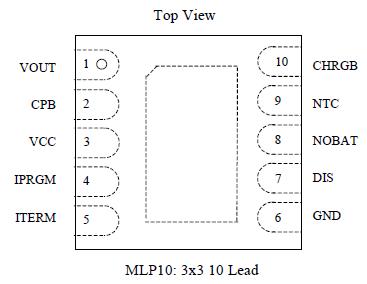

Connection Diagram


Specifications

</
Parameter
Symbol
Maximum
Units
VCC, CPB, CHRGB, NTC, DIS to GND
-0.3 to 7.0
V
VOUT, NOBAT, IPRGM, ITERM to GND
-0.3 to +6.0
V
Power Dissipation
MLP (Derate 20mW/°C above 85)
PD
2
W
Thermal Impedance, Junction to Case
JA
50*
/W
Junction Temperature
Tjmax
150
Operating Ambient Temperature Range
TA
-40 to +85
Peak IR Reflow temperature, soldering 20s-40s
TLEAD
260
Storage Temperature Range
TSTG
-65 to 150
VOUT short to GND
Continuous
A
VOUT Output Current
1
A



Description

The SC806 is a fully integrated, single cell, constant-current (cc)/constant-voltage (cv) Lithium-Ion battery charger in a tiny 3x3 mm thermally enhanced MLP package. The  SC806 can operate as a stand-alone charger or in conjunction with a Power Management Controller (PMIC).

The SC806 has a pre-charge function for trickle charging deeply discharged batteries. The fast charge current is enabled automatically when the battery voltage reaches the required threshold. When the battery reaches the constant voltage or CV portion of the charge curve the SC806 switches to CV regulation mode. In this mode the output current decays until the termination current is reached. At this point the SC806 signals the charge cycle is complete and turns off the output and enters the monitor mode. If the battery voltage drops by 100mV from the CV voltage a new charge cycle will begin.

The SC806 can also function as a general purpose current source or as a current source for charging Nickel- Cadmium (NiCd) and Nickel-Metal-Hydride (NiMH) batteries.
