SC91415DK

Features: *Tone/Pulse switchable*Wide operating voltage from 2.0 V to 5.5 V*Low operating current, 0.15mA (Pulse) and 0.3mA (Tone) typically*Adding resistor on keyboard scan pin that can select many telephone specifications, such as: Pulse rate, M/B ratio, Flash time, lock dialing functions.*Lock ...

product image

SC91415DK Picture
See larger image
SeekIC No. : 004485758 Detail

SC91415DK: Features: *Tone/Pulse switchable*Wide operating voltage from 2.0 V to 5.5 V*Low operating current, 0.15mA (Pulse) and 0.3mA (Tone) typically*Adding resistor on keyboard scan pin that can select many...

SC91415DK Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SC91415DK
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*Tone/Pulse switchable
*Wide operating voltage from 2.0 V to 5.5 V
*Low operating current, 0.15mA (Pulse) and 0.3mA (Tone) typically
*Adding resistor on keyboard scan pin that can select many telephone specifications, such as: Pulse rate, M/B ratio, Flash time, lock dialing functions.
*Lock function provides conventionality key lock and password lock operations
*Ring detector is designed to prevent illegal dialing from pocket dialer
*13 set one touch or (3 set one touch and 10 set two touch) repertory memory, each one can hold data up to 16 digits
*A 32-digit LNB (last number) redial memory
*Handfree function provides on-hook dialing and speakerphone application
*Pause and P-T time are fixed to 3.6 seconds
*Tone duration and inter-tone pause time are fixed to 98 ms
*Using 3.579545 MHz crystal or ceramic resonator
*SDO function supports LCD driver and voice synthesizer to indicate dialing numbers.
*Line hold function is designed for stopping conversation temporality
*Melody generator provides music on hold function
*Keytone function provides rapidly keying recognition


Pinout

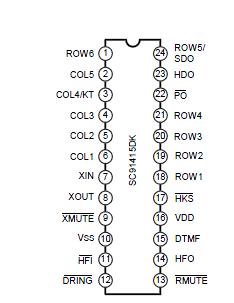

Connection Diagram




Specifications

         Characteristic

Symbol

Value

Unit

Power Supply Voltage

VDD

6.0

V

Input Voltage

VIN

VSS-0.3 ~ VDD+0.3

V

Power Dissipation

PD

500

mW

Operating Temperature

Topr

0 ~ +55

Storage Temperature

Tstg

-55 ~ +125






Description

The SC91415DK  is a series of tone/pulse switchable dialers that is composed of T/P dialer and T/P dialer with 13 set memories. The SC91415DK  series provide necessary functions of telephone set for application in any environment, such as Pulse dialing, Tone (DTMF) dialing, Handfree dialing, keying tone and lock functions. The lock function is designed to inhibit toll dialing operation. Beside this, melody generator, ring detector and SDO (Serial Data Output) functions are provided in advance version. Melody generator will output dual-tone music in line hold duration. Ring detector can prevent illegal dialing from pocket dialer. The SDO SC91415DK is designed to drive LCD driver and voice synthesizer.
