SC9235S

Features: * Attenuation can be controlled from 0dB to -78dB by up, down input.* This IC have 20dB tap for loudness circuit.* This IC features a built-in DC output circuit (7 level) for volume level meter.* Polysilicon resistors enables low-distortion, high-performance volume systems.* Volume level...

product image

SC9235S Picture
See larger image
SeekIC No. : 004485775 Detail

SC9235S: Features: * Attenuation can be controlled from 0dB to -78dB by up, down input.* This IC have 20dB tap for loudness circuit.* This IC features a built-in DC output circuit (7 level) for volume level ...

SC9235S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SC9235S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Attenuation can be controlled from 0dB to -78dB by up, down input.
* This IC have 20dB tap for loudness circuit.
* This IC features a built-in DC output circuit (7 level) for volume level meter.
* Polysilicon resistors enables low-distortion, high-performance volume systems.
* Volume level remains in backup mode with low current consumption.
* Package is DIP16 and SOP16.

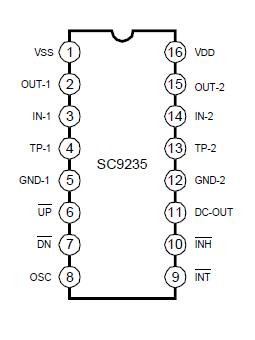

Pinout

Connection Diagram


Specifications

         Characteristic

Symbol

Value

Unit

Supply Voltage

VDD

-0.3 ~15

V

Input Voltage

VIN

-0.3 ~ VDD+0.3

V

Power Dissipation

PD

300

mW

Operating Temperature

Topr

-40~ +75

Storage Temperature

Tstg

-55 ~ +150






Description

The SC9235 and SC9235S are an optimum CMOS IC which has been designed for electronization of volume control of audio equipment, etc.
