SC9257

Features: * Optimal for configuring digital tuning systems in high-fi tuners and car stereos.* built-in prescalers. Operate at input frequency ranging from 30~150 MHz during FMIN input (with 2 modulus prescaler) and at 0.5~40MHz during AMIN input (with 2 modulus prescaler or direct dividing).* 16 ...

product image

SC9257 Picture
See larger image
SeekIC No. : 004485778 Detail

SC9257: Features: * Optimal for configuring digital tuning systems in high-fi tuners and car stereos.* built-in prescalers. Operate at input frequency ranging from 30~150 MHz during FMIN input (with 2 modul...

SC9257 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SC9257
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Optimal for configuring digital tuning systems in high-fi tuners and car stereos.
* built-in prescalers. Operate at input frequency ranging from 30~150 MHz during FMIN input (with 2 modulus prescaler) and at 0.5~40MHz during AMIN    input (with 2 modulus prescaler or direct dividing).
* 16 bit programmable counter, dual parallel output phase comparator, crystal oscillator and reference counter.
* 3.6MHz, 4.5MHz, 7.2MHz or 10.8MHz crystal oscillators can be used.
* 15 possible reference frequencies. ( When using 4.5MHz crystal)
* Built-in 20 bit general-purpose counter for such uses as measuring intermediate frequencies (IFIN1 and IFIN2) and lowfrequency pilot signal cycles (SCIN).
* High-precision (±0.55~±7.15s) PLL phase error detection.
* Numerous general-purpose I/O pins for such uses as peripheral circuit control.
* 4 N-channel open-drain output ports (OFF withstanding voltage:12V) for such uses as control signal output.
* Standby mode function (turns off FM, AM and IF amps) to save current consumption.
* All functions controlled through 3 serial bus lines.
* CMOS structure with operating power supply range of VDD=5.0±0.5V.

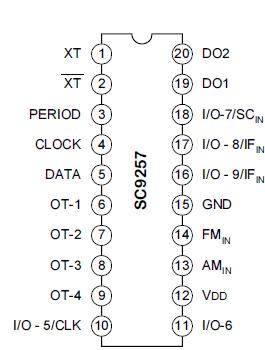

Pinout

Connection Diagram


Specifications

         Characteristic

Symbol

Value

Unit

Supply Voltage

VCC

-0.36.0

V

Input Voltage

VIN

-0.3 ~ VDD+0.3

V

N-ch Open-Drain Off withstanding Voltage
VOFF
13
V

Power Dissipation

PD

300(200)

mW

Operating Temperature

TOPR

-40 ~ 85

Storage Temperature

TSTG

-65 ~ 150






Description

The SC9257 is phase-locked loop (PLL) LSIs for digital tuning systems (DTS) with built in 2 modulus prescalers. All functions ate controlled through 3 serial bus lines. These LSIs are used to configure high-performance digital tuning system.
