SCAN182245A

Features: High performance BiCMOS technology 25 series resistors in outputs eliminate the need for external terminating resistors Dual output enable control signals TRI-STATEE ®outputs for bus-oriented applications 25 mil pitch SSOP (Shrink Small Outline Package) IEEE 1149.1 (JTAG) Compliant ...

product image

SCAN182245A Picture
See larger image
SeekIC No. : 004485823 Detail

SCAN182245A: Features: High performance BiCMOS technology 25 series resistors in outputs eliminate the need for external terminating resistors Dual output enable control signals TRI-STATEE ®outputs for bus-...

SCAN182245A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SCAN182245A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

  High performance BiCMOS technology
  25 series resistors in outputs eliminate the need for external terminating resistors
  Dual output enable control signals
  TRI-STATEE ®outputs for bus-oriented applications
  25 mil pitch SSOP (Shrink Small Outline Package)
  IEEE 1149.1 (JTAG) Compliant
  Includes CLAMP, IDCODE and HIGHZ instructions
  Additional instructions SAMPLE-IN, SAMPLE-OUT and EXTEST-OUT
  Power Up TRI-STATE for hot insert
  Member of National's SCAN Products


Pinout

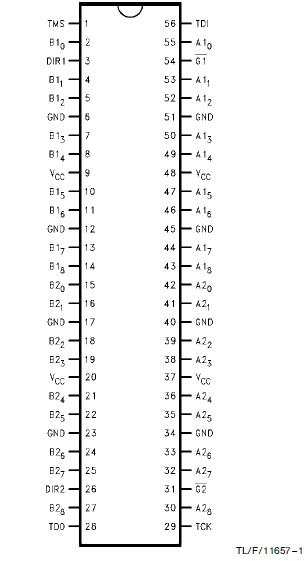

Connection Diagram


Specifications

If Military/Aerospace specified devices are required, please contact the National Semiconductor SalesOffice/Distributors for availability and specifications.
Storage Temperature                                             -65 to -150
Ambient Temperature under Bias                           -55 to -125
Junction Temperature under Bias
Ceramic                                                                  -55 to -175
Plastic                                                                    -55 to -150
VCC Pin Potential to
Ground Pin                                                             -0.5V to a7.0V
Input Voltage (Note 2)                                           -0.5V to a7.0V
Input Current (Note 2)                                           -30 mA to a5.0 mA
Voltage Applied to Any Output
in the Disabled or
Power-Off State                                                     -0.5V to a5.5V
in the HIGH State                                                   -0.5V to VCC
Current Applied to Output
in LOW State (Max)                                                Twice the Rated IOL (mA)
DC Latchup Source Current
Commercial                                                            -500 mA
Military                                                                   -300 mA
Over Voltage Latchup (I/O)                                   10V
ESD (HBM) Min.                                                      2000V


Description

The SCAN182245A is a high performance BiCMOS bidirectional line driver featuring separate data inputs organized into dual 9-bit bytes with byte-oriented output enable and direction control signals. This SCAN182245A is compliant with IEEE 1149.1 Standard Test Access Port and Boundary Scan Architecture with the incorporation of the defined boundary-scan test logic and test access port consisting of Test Data Input (TDI), Test Data Out (TDO), Test Mode Select (TMS), and Test Clock (TCK).
