SCAN182541A

Features: IEEE 1149.1 (JTAG) Compliant High performance BiCMOS technology 25 series resistor outputs eliminate need for external terminating resistors Dual output enable signals per byte 3-STATE outputs for bus-oriented applications 25 mil pitch SSOP (Shrink Small Outline Package) Includes CLAMP,...

product image

SCAN182541A Picture
See larger image
SeekIC No. : 004485827 Detail

SCAN182541A: Features: IEEE 1149.1 (JTAG) Compliant High performance BiCMOS technology 25 series resistor outputs eliminate need for external terminating resistors Dual output enable signals per byte 3-STATE ou...

SCAN182541A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SCAN182541A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

  IEEE 1149.1 (JTAG) Compliant
  High performance BiCMOS technology
  25 series resistor outputs eliminate need for external terminating resistors
  Dual output enable signals per byte
  3-STATE outputs for bus-oriented applications
  25 mil pitch SSOP (Shrink Small Outline Package)
  Includes CLAMP, IDCODE and HIGHZ instructions
  Additional instructions SAMPLE-IN, SAMPLE-OUT and EXTEST-OUT
  Power up 3-STATE for hot insert
  Member of Fairchild's SCAN Products


Pinout

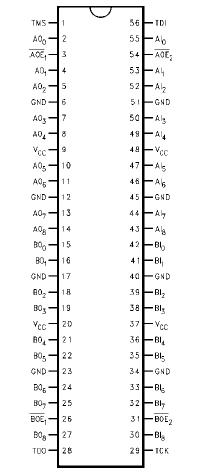

Connection Diagram


Specifications

Storage Temperature                                                                               −65°C to +150°C
Ambient Temperature under Bias                                                             −55°C to +125°C
Junction Temperature under Bias                                                             −55°C to +150°C
VCC Pin Potential to Ground Pin                                                               −0.5V to +7.0V
Input Voltage (Note 2)                                                                             −0.5V to +7.0V
Input Current (Note 2)                                                                             −30 mA to +5.0 mA
Voltage Applied to Any Output
in Disabled or Power-Off State                                                                 −0.5V to +5.5V
in the HIGH State                                                                                     −0.5V to VCC
Current Applied to Output
in LOW State (Max)                                                                                  Twice the Rated IOL (mA)
DC Latchup Source Current                                                                      −500 mA
Over Voltage Latchup (I/O)                                                                      10V
EDS (HBM) Min.                                                                                         2000V


Description

The SCAN182541A is a high performance BiCMOS line driver featuring separate data inputs organized into dual 9- bit bytes with byte-oriented paired output enable control signals. This SCAN182541A is compliant with IEEE 1149.1 Standard Test Access Port and Boundary-Scan architecture with the incorporation of the defined Boundary-Scan test logic and test access port consisting of Test Data Input (TDI), Test Data Out (TDO), Test Mode Select (TMS), and Test Clock (TCK).
