Product Details

Description



Features:

  IEEE 1149.1 (JTAG) Compliant
  Dual output enable signals per byte
  3-STATE outputs for bus-oriented applications
  9-bit data busses for parity applications
  Reduced-swing outputs source 32 mA/sink 64 mA
  Guaranteed to drive 50 transmission line to TTL input levels of 0.8V and 2.0V
  TTL compatible inputs
  25 mil pitch SSOP (Shrink Small Outline Package)
  Includes CLAMP and HIGHZ instructions
  Member of Fairchild's SCAN Products



Pinout

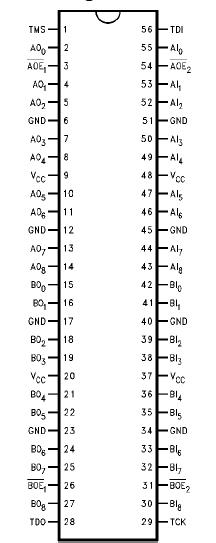

  Connection Diagram


Specifications

Supply Voltage (VCC)                                                                 −0.5V to +7.0V
DC Input Diode Current (IIK)
VI = −0.5V                                                                                 −20 mA
VI = VCC +0.5V                                                                          +20 mA
DC Output Diode Current (IOK)
VO = −0.5V                                                                                −20 mA
VO = VCC +0.5V                                                                         +20 mA
DC Output Voltage (VO)                                                            −0.5V to VCC +0.5V
DC Output Source/Sink Current (IO)                                         ±70 mA
DC VCC or Ground Current
Per Output Pin                                                                          ±70 mA
Junction Temperature
SSOP                                                                                        +140°C
Storage Temperature                                                               −65°C to +150°C
ESD (Min)                                                                                 2000V



Description

The SCAN18541T is a high speed, low-power line driver featuring separate data inputs organized into dual 9-bit bytes with byte-oriented paired output enable control signals. This SCAN18541T is compliant with IEEE 1149.1 Standard Test Access Port and Boundary Scan Architecture with the incorporation of the defined boundary-scan test logic and test access port consisting of Test Data Input (TDI), Test Data Out (TDO), Test Mode Select (TMS), and Test Clock (TCK)
