SCANSTA112

True IEEE 1149.1 hierarchical and multidrop addressable capability
The 8 address inputs support up to 249 unique slot addresses, an Interrogation Address, Broadcast Address, and 4 Multi-cast Group Addresses (address 000000 is reserved)
7 IEEE 1149.1-compatible configurable local scan ports
Bi-directional Backplane and LSP0 ports are interchangeable slave ports
Capable of ignoring TRST of the backplane port when it becomes the slave.
Stitcher Mode bypasses level 1 and 2 protocols
Mode Register0 allows local TAPs to be bypassed, selected for insertion into the scan chain individually, or serially in groups of two or three
Transparent Mode can be enabled with a single instruction to conveniently buffer the backplane IEEE 1149.1 pins to those on a single local scan port
General purpose local port passthrough bits are useful for delivering write pulses for Flash programming or monitoring device status.
Known Power-up state
TRST on all local scan ports
32-bit TCK counter
16-bit LFSR Signature Compactor
Local TAPs can become TRI-STATE via the OE input to allow an alternate test master to take control of the local TAPs (LSP0-3 have a TRI-STATE notification output)
3.0-3.6V VCC Supply Operation
Supports live insertion/withdrawal 20051250

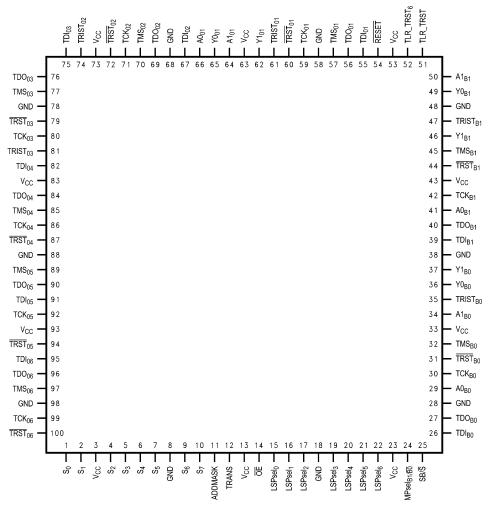

The SCANSTA112 extends the IEEE Std. 1149.1 test bus into a multidrop test bus environment. The advantage of a multidrop approach over a single serial scan chain is improved test throughput and the ability to remove a board from the system and retain test access to the remaining modules. Each SCANSTA112 supports up to 7 local IEEE1149.1 scan chains which can be accessed individually or combined serially.

Addressing is accomplished by loading the instruction register with a value matching that of the Slot inputs. Backplane and inter-board testing can easily be accomplished by parking the local TAP Controllers in one of the stable TAP Controller states via a Park instruction. The 32-bit TCK counter enables built in self test operations to be performed on one port while other scan chains are simultaneously tested.

The SCANSTA112 has a unique feature in that the backplane port and the LSP0 port are bidirectional. They can be configured to alternatively act as the master or slave port so an alternate test master can take control of the entire scan chain network from the LSP0 port while the backplane port becomes a slave.
