General Description
SD10100T Maximum Ratings
| PARAMETER |
SYMBOL |
SD1020T |
SD1030T |
SD1040T |
SD1050T |
SD1060T |
SD1080T |
SD10100T |
SD10150T |
UNITS |
| Maximum Recurrent Peak Reverse Voltage |
VRRM |
20 |
30 |
40 |
50 |
60 |
80 |
100 |
150 |
V |
| Maximum RMS Voltage |
VRMS |
14 |
21 |
28 |
35 |
42 |
56 |
70 |
105 |
V |
| Maximum DC Blocking Voltage |
VDC |
20 |
30 |
40 |
50 |
60 |
80 |
100 |
150 |
V |
| Maximum Average Forward Rectified Current .375"(9.5mm) lead length at Tc =100 |
IAV |
10.0 |
A | |||||||
| Peak Forward Surge Current : 8.3ms single half sine-wave superimposed on rated load(JEDEC method) |
FSM |
100 |
A | |||||||
| Maximum Instantaneous Forward Voltage at 10.0A |
VF |
0.55 |
0.75 |
0.85 |
0.92 |
V | ||||
| Maximum DC Reverse Current TA=25 at Rated DC Blocking Voltage TA=100 |
IR |
0.2 20 |
mA | |||||||
| Maximum Thermal Resistance |
RJC RJA |
3.0 80 |
/ W | |||||||
| Operating Junction Temperature Range |
TJ |
-50 to +125 |
||||||||
| Storage Temperature Range |
TSTG |
-50 to +150 |
||||||||
SD10100T Features
• Plastic package has Underwriters Laboratory Flammability Classification 94V-O
• For surface mounted applications
• Low profile package
• Built-in strain relief
• Low power loss, High efficiency
• High surge capacity
• For use in low voltage high frequency inverters, free wheeling, and polarity protection applications
• Pb free product are available : 99% Sn above can meet Rohs environment substance directive request
• For surface mounted applications
• Low profile package
• Built-in strain relief
• Low power loss, High efficiency
• High surge capacity
• For use in low voltage high frequency inverters, free wheeling, and polarity protection applications
• Pb free product are available : 99% Sn above can meet Rohs environment substance directive request
SD10100T
PDF/DataSheet Download
- Datasheet: SD10100T
- File Size: 44093 KB
- Manufacturer: PANJIT [Pan Jit International Inc.]
- Click here to Download
- ·SD1002
- ETC [ETC]
- 1.0A Surface Mount Schottky Barrier Rectifier
- 51235 KB
- ·SD1003
- ETC [ETC]
- 1.0A Surface Mount Schottky Barrier Rectifier
- 51235 KB
- ·SD1003CS-T3
- WTE [Won-Top Electronics]
- 10A DPAK SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
- 47581 KB
- ·SD1004
- ETC [ETC]
- 1.0A Surface Mount Schottky Barrier Rectifier
- 51235 KB
- ·SD1004CS-T3
- WTE [Won-Top Electronics]
- 10A DPAK SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
- 47581 KB
- ·SD1005CS-T3
- WTE [Won-Top Electronics]
- 10A DPAK SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
- 47581 KB
- ·SD1006
- ETC [ETC]
- 1.0A Surface Mount Schottky Barrier Rectifier
- 37811 KB
- ·SD1006CS-T3
- WTE [Won-Top Electronics]
- 10A DPAK SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
- 47581 KB
SD10100T Relative Products
SD10100S
SD10-100-R

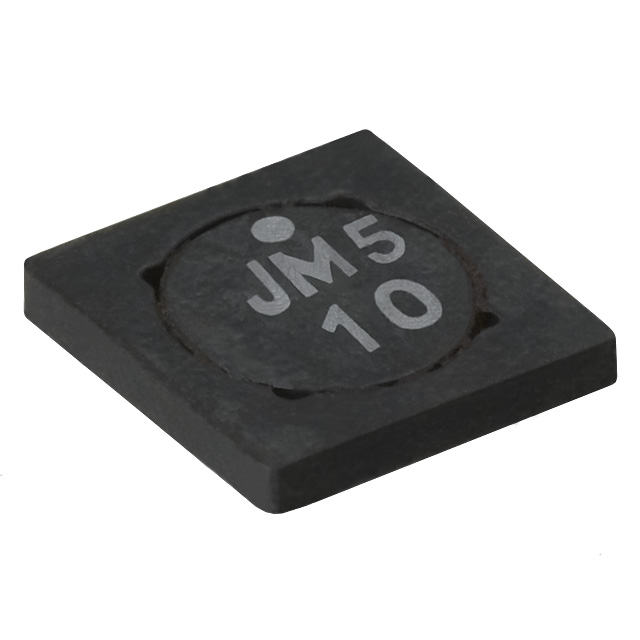

INDUCTOR POWER SHIELD 10UH SMD
