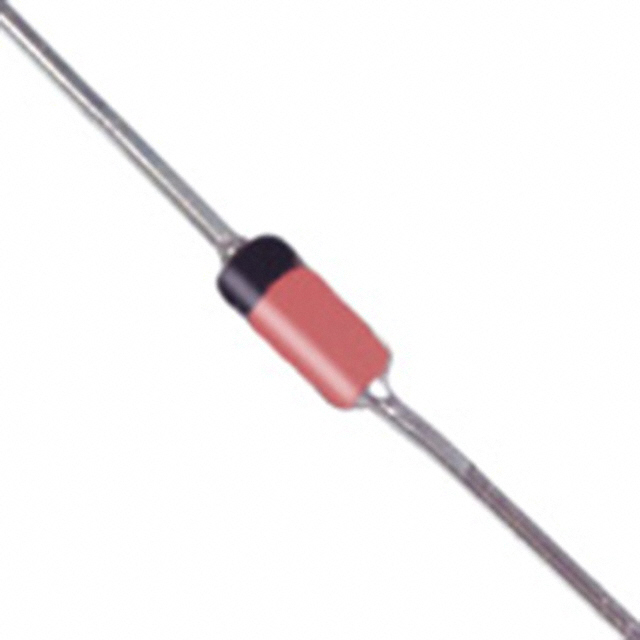

SD103B

Series: -
Current - Average Rectified (Io) (per Diode): -
Speed: Fast Recovery = 200mA (Io)
Diode Configuration: -
Mounting Type: Through Hole
Package / Case: DO-204AH, DO-35, Axial
Supplier Device Package: DO-35
Packaging: Tape & Reel (TR)
Diode Type: Schottky
Voltage - DC Reverse (Vr) (Max): 30V
Voltage - Forward (Vf) (Max) @ If: 600mV @ 200mA
Reverse Recovery Time (trr): 10ns
Capacitance @ Vr, F: 50pF @ 0V, 1MHz
Manufacturer: Diodes Inc
Current - Reverse Leakage @ Vr: 5µA @ 20V
Current - Average Rectified (Io): 350mA (DC)


Specifications

Part Number	SD103B
Power Rating (mW)	400
Peak Repetitive Reverse Voltage VRRM (V)	30
Forward Continuous Current IFM (mA)	350
Forward Voltage Drop VF (V)	0.60
@ IF (mA)	200
Max Reverse Current IR (µA)	5
@ VR (V)	20
Capacitance CTOT (typ) (pF)	50

Parameters:

Technical/Catalog Information	SD103B
Vendor	Diodes Inc
Category	Discrete Semiconductor Products
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	350mA (DC)
Voltage - Forward (Vf) (Max) @ If	600mV @ 200mA
Reverse Recovery Time (trr)	10ns
Current - Reverse Leakage @ Vr	5A @ 20V
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Mounting Type	Through Hole, Axial
Package / Case	DO-35, Axial
Packaging	Tape & Reel (TR)
Capacitance @ Vr, F	50pF @ 0V, 1MHz
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	SD103B SD103B SD103BDITR ND SD103BDITRND SD103BDITR
