SD1134

Application450 - 512 MHz12.5 VOLTSEFFICIENCY 55%COMMON EMITTERPOUT = 2.0 W MIN. WITH 10.0 dB GAINPinoutSpecifications Symbol Parameter Value Unit VCBO Collector-Base Voltage 36 V VCEO Collector-Emitter Voltage 16 V VCES Collector-Emitter Voltage ...

product image

SD1134 Picture
See larger image
SeekIC No. : 004486305 Detail

SD1134: Application450 - 512 MHz12.5 VOLTSEFFICIENCY 55%COMMON EMITTERPOUT = 2.0 W MIN. WITH 10.0 dB GAINPinoutSpecifications Symbol Parameter Value Unit VCBO Collector-Base Voltage ...

SD1134 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SD1134
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Application

450 - 512 MHz
12.5 VOLTS
EFFICIENCY 55%
COMMON EMITTER
POUT = 2.0 W MIN. WITH 10.0 dB GAIN


Pinout

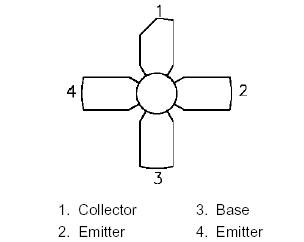

Connection Diagram


Specifications

Symbol

Parameter

Value

Unit

VCBO

Collector-Base Voltage

36

V

VCEO

Collector-Emitter Voltage

16

V

VCES

Collector-Emitter Voltage

36

V

VEBO

Emitter-Base Voltage

4.0

V

IC

Device Current

0.75

A

PDISS

Power Dissipation

5

W

TJ

Junction Temperature

+200

°C

TSTG

Storage Temperature

- 65 to +150

°C




Description

The SD1134 is a 12.5 V Class C epitaxial silicon NPN planar transistor designed primarily for UHF communications. This device utilizes improved metallization
to achieve infinite VSWR at rated operating conditions.
