Product Details

Description



Application

470 MHz
12.5 VOLTS
EFFICIENCY 60%
COMMON EMITTER
POUT = 5.0 W MIN. WITH 8.5 dB GAIN

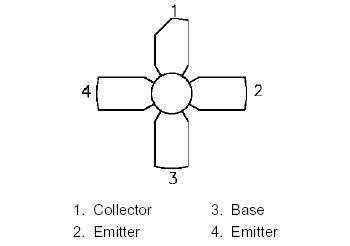

Pinout

Connection Diagram


Specifications

Symbol

Parameter

Value

Unit

VCBO

Collector-Base Voltage

36

V

VCER

Collector-Emitter Voltage

18

V

VCES

Collector-Emitter Voltage

36

V

VEBO

Emitter-Base Voltage

4.0

V

IC

Device Current

2.0

A

PDISS

Power Dissipation

37

W

TJ

Junction Temperature

+200

°C

TSTG

Storage Temperature

- 65 to +150

°C




Description

The SD1135 is a 12.5 V Class C epitaxial silicon NPN planar transistor designed primarily for UHF communications. This device utilizes improved metallization to achieve infinite VSWR at rated operating conditions.
