SD1274-01

Transistors RF Bipolar Power RF Transistor

product image

SD1274-01 Picture
SeekIC No. : 00218301 Detail

SD1274-01: Transistors RF Bipolar Power RF Transistor

floor Price/Ceiling Price

US $ 20.85~22.84 / Piece | Get Latest Price
Part Number:
SD1274-01
Mfg:
Advanced Semiconductor, Inc.
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~25
  • 25~50
  • Unit Price
  • $22.84
  • $22.12
  • $21.3
  • $20.85
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Maximum Operating Frequency : 175 MHz Collector- Emitter Voltage VCEO Max : 18 V
Emitter- Base Voltage VEBO : 4 V Continuous Collector Current : 4 A
Power Dissipation : 65 W Package / Case : SOT-123
Packaging : Tray

Description

Configuration :
Maximum DC Collector Current :
Emitter- Base Voltage VEBO : 4 V
Packaging : Tray
Collector- Emitter Voltage VCEO Max : 18 V
Maximum Operating Frequency : 175 MHz
Package / Case : SOT-123
Continuous Collector Current : 4 A
Power Dissipation : 65 W


Application

160 MHz
13.6 VOLTS
COMMON EMITTER
POUT = 30 W MIN. WITH 10 dB GAIN




Pinout

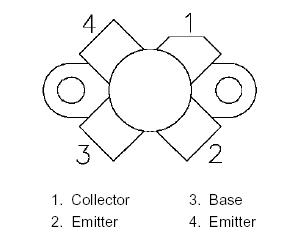

  Connection Diagram


Specifications

Symbol

Parameter

Value

Unit

VCBO

Collector-Base Voltage

36

V

VCEO

Collector-Emitter Voltage

16

V

VCES

Collector-Emitter Voltage

36

V

VEBO

Emitter-Base Voltage

4.0

V

IC

Device Current

8.0

A

PDISS

Power Dissipation

70

W

TJ

Junction Temperature

+200

°C

TSTG

Storage Temperature

- 65 to +150

°C




Description

The SD1274-01 is a13.6 VClass C epitaxial silicon NPN planar transistor designed primarily for VHF communications. The SD1274-01 utilizes an emitter ballasted die geometry to withstand severe load mismatch conditions.




Parameters:

Technical/Catalog InformationSD1274-01
VendorSTMicroelectronics
CategoryDiscrete Semiconductor Products
Frequency - Transition-
Noise Figure (dB Typ @ f)-
Current - Collector (Ic) (Max)8A
DC Current Gain (hFE) (Min) @ Ic, Vce20 @ 250mA, 5V
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)16V
Gain10dB
Power - Max70W
Compression Point (P1dB)-
Package / CaseM113
PackagingBulk
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names SD1274 01
SD127401
497 5454 ND
4975454ND
497-5454
