SD1275: Transistors RF Bipolar Power NPN 13.6V 160MHz

SD1275 Data Sheet

Get Latest Price

Part Number:: SD1275
Mfg:: STMicroelectronics
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Quick Details

Configuration :	Single Dual Base	Collector- Emitter Voltage VCEO Max :	16 V
Emitter- Base Voltage VEBO :	4 V	Continuous Collector Current :	8 A
Maximum DC Collector Current :	8 A	Power Dissipation :	70 W
Package / Case :	M135	Packaging :	Bulk

Description

Maximum Operating Frequency :
Emitter- Base Voltage VEBO : 4 V
Packaging : Bulk
Power Dissipation : 70 W
Collector- Emitter Voltage VCEO Max : 16 V
Continuous Collector Current : 8 A
Maximum DC Collector Current : 8 A
Configuration : Single Dual Base
Package / Case : M135

Application

160 MHz
13.6 VOLTS
COMMON EMITTER
P_OUT= 40 W MIN. WITH 9.0 dB GAIN

Pinout

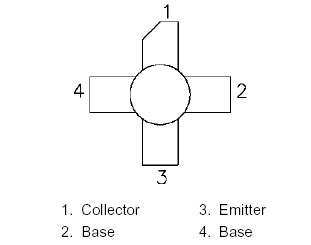

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CBO	Collector-Base Voltage	36	V
V_CEO	Collector-Emitter Voltage	16	V
V_CES	Collector-Emitter Voltage	36	V
V_EBO	Emitter-Base Voltage	4.0	V
I_C	Device Current	8.0	A
P_DISS	Power Dissipation	70	W
T_J	Junction Temperature	+200	^°C
T_STG	Storage Temperature	- 65 to +150	^°C

Description

The SD1275 is a 13.6 V Class C epitaxial silicon NPN planar transistor designed primarily for VHF communications. The SD1275 utilizes an emitter ballasted die geometry to withstand severe load mismatch conditions.

Parameters:

Technical/Catalog Information	SD1275
Vendor	STMicroelectronics
Category	Discrete Semiconductor Products
Frequency - Transition	-
Noise Figure (dB Typ @ f)	-
Current - Collector (Ic) (Max)	8A
DC Current Gain (hFE) (Min) @ Ic, Vce	20 @ 250mA, 5V
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	16V
Gain	9dB
Power - Max	70W
Compression Point (P1dB)	-
Package / Case	M135
Packaging	Bulk
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SD1275 SD1275 497 5455 ND 4975455ND 497-5455
