SD1390

Application470 MHZ24 VOLTSPOUT = 1.5 W WITH 13.0 dB MIN. GAINCLASS ACOMMON EMITTERPOWER SATURATION 2.2 W MIN.PinoutSpecifications Symbol Parameter Value Unit VCBO Collector-Base Voltage 40 V VCEO Collector-Emitter Voltage 24 V VEBO Emitter-Base V...

product image

SD1390 Picture
See larger image
SeekIC No. : 004486326 Detail

SD1390: Application470 MHZ24 VOLTSPOUT = 1.5 W WITH 13.0 dB MIN. GAINCLASS ACOMMON EMITTERPOWER SATURATION 2.2 W MIN.PinoutSpecifications Symbol Parameter Value Unit VCBO Collector-B...

SD1390 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SD1390
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Application

470 MHZ
24 VOLTS
POUT = 1.5 W WITH 13.0 dB MIN. GAIN
CLASS A
COMMON EMITTER
POWER SATURATION 2.2 W MIN.


Pinout

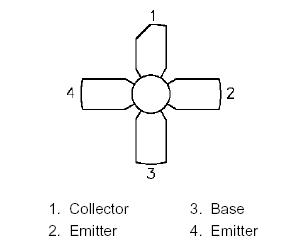

Connection Diagram


Specifications

Symbol

Parameter

Value

Unit

VCBO

Collector-Base Voltage

40

V

VCEO

Collector-Emitter Voltage

24

V

VEBO

Emitter-Base Voltage

3.5

V

IC

Collector Current

0.35

A

PDISS

Power Dissipation (TC +75°C)

8.33

W

TJ

Junction Temperature

+200

°C

TSTG

Storage Temperature

- 65 to +150

°C




Description

The SD1390 is a gold metallized NPN planar transistor using diffused emitter ballast resistors for reliability and ruggedness. The SD1390 is specifically designed as a low power, high gain driver and can be operated in Class A, B or C.
